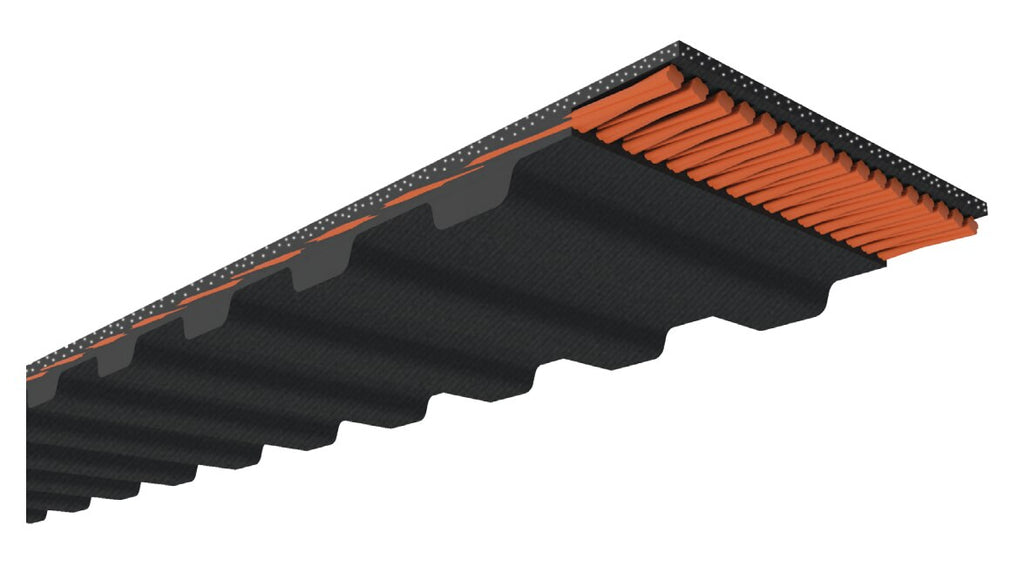

100MXL024 Timing Belt
The 100MXL024 is a timing belt from D&D Global's Dura-Premium Torque - Mxl Series line. It transmits power positively with no slip, holding timing between shafts on synchronous drives.
| Specification | Value |
|---|---|
| Part Number | 100MXL024 |
| Belt Type | Timing Belt |
| Tooth Profile | MXL Trapezoidal |
| Tooth Pitch | 2.032 mm |
| Number of Teeth | 125 |
| Belt Width | 0.24 in |
| Pitch Length | 10 in (Pitch Length) |
| Construction | Chloroprene (Neoprene), Fiberglass cord, fabric tooth cover |
| Weight | 0.005 lb |
Applications
- Conveyors and indexing drives
- Pumps, compressors, and blowers
- Packaging, processing, and automation equipment
- Positive drives where timing must stay locked with no slip
Browse the full range in Timing Belts, or use our belt identification guide to match an existing part.
Cross-Reference
100MXL024 is a standardized industry size, so a 100MXL024 from any major manufacturer shares the same dimensions and runs on the same pulleys/sheaves. For OEM or proprietary numbers, confirm the equivalent before ordering — call (888) 203-2358.
All manufacturer names and part numbers are used for reference and identification purposes only. Texas Belting & Supply is not affiliated with, sponsored by, or endorsed by any other manufacturer.
Frequently Asked Questions
What is 100MXL024 used for?
100MXL024 is a timing belt used on positive, no-slip drives such as conveyors, pumps, packaging machinery, robotics, and machine tools. Synchronous belts hold timing between shafts, so they suit applications where slip is unacceptable.
What are the dimensions of 100MXL024?
100MXL024 has a 2.032 mm tooth pitch, 125 teeth, a belt width of 0.24 in, and a 10 in (Pitch Length). The pitch length is the pitch-line circumference.
What does the MXL in 100MXL024 mean?
MXL is a Trapezoidal synchronous tooth profile. The belt must match the pulley, so a MXL belt runs only on MXL pulleys.
Does 100MXL024 ship from Houston?
Yes. 100MXL024 ships from our Houston, Texas warehouse, with same-day shipping on in-stock items. Call (888) 203-2358 to confirm stock and request a quote.
Need a quote on 100MXL024?
Houston warehouse — same-day shipping on stock items.
