D&D Global 1135-5M-15 Timing Belt — 5M Section, 15mm Wide, 227T, 1135mm

Save $ 6.66

Price:
$ 22.20 $ 28.86

Description

The D&D Global 1135-5M-15 is a synchronous timing belt with 5M-pitch profile, manufactured by D&D Global.

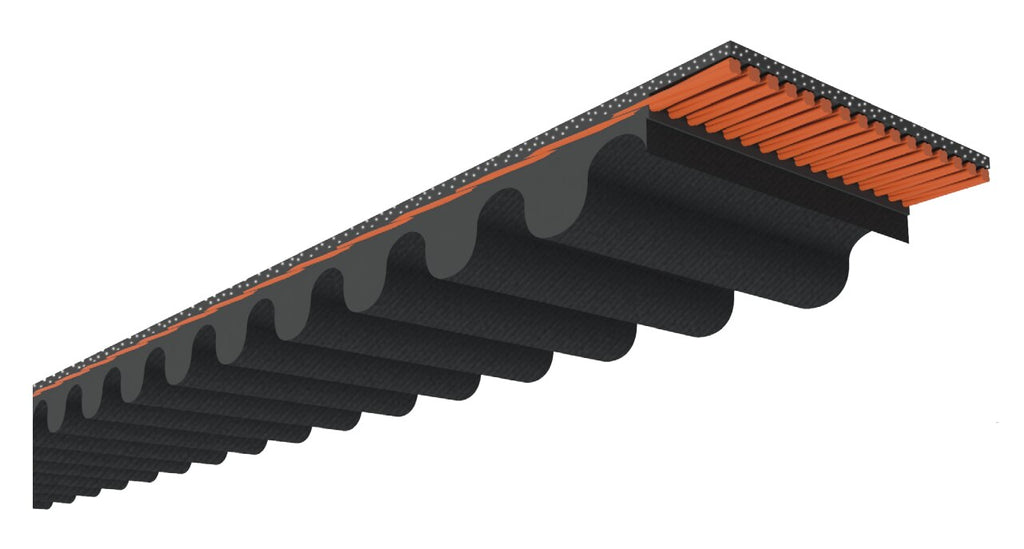

This belt uses a curved HTD (High Torque Drive) tooth profile for improved tooth shear strength and higher load capacity.

Constructed with Neoprene body and fiberglass cord tensile cord for precise positioning and dependable synchronous power transmission.

Specifications

Pitch Profile 5M
Pitch 5.0 mm
Tooth Profile Curved (HTD)
Tooth Location Single Side
Number of Teeth 227
Width 15mm
Length 1135 mm
Material Neoprene
Reinforcement Fiberglass Cord
Color Black
Temperature Range -30°F to 185°F
