Megadyne Gold 1260GLD2-14M37 Timing Belt, 14M

Save $ 89.24

Price:
$ 408.63 $ 497.87

Description

Megadyne Gold 1260GLD2-14M37 Timing Belt, 14M

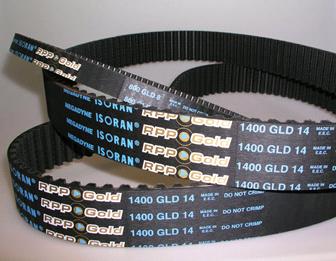

The Megadyne MEGASYNC 1260GLD2-14M37 is a Gold curvilinear (HTD/RPP) synchronous timing belt with a 14M (14mm-pitch) tooth, a 1260 mm pitch length, and a 37mm width, 90 teeth. It delivers positive, slip-free power transmission for industrial drives where shaft timing matters. It replaces the equivalent Jason Industrial 1260GLD2-14M37.

Specification Value
Part Number 1260GLD2-14M37
Profile / Pitch 14M
Construction Rubber/Fiberglass
Tooth Profile Curvilinear (HTD/RPP)
Width 37mm
Thickness 10.0mm
Pitch Length 1260 mm
Number of Teeth 90
Performance Tier Gold
Temperature Range -13°F to 176°F

Applications

  • Conveyors and material handling
  • Pumps, mixers, and packaging machinery
  • Machine tools requiring shaft synchronization
  • Quiet, lubrication-free alternatives to chain or gear drives

Cross-References

The 14M curvilinear profile interchanges by pitch, length, and width with Gates PowerGrip GT3/HTD 14M, Continental Synchroforce 14M, Dayco 1260GLD2-14M37, and Jason Industrial 1260GLD2-14M37. Runs on standard 14M (HTD) sprockets. See the timing belts collection.

Frequently Asked Questions

What is the Megadyne 1260GLD2-14M37 used for?

The 1260GLD2-14M37 is used for conveyors and material handling, such as pumps, mixers, and packaging machinery and machine tools requiring shaft synchronization.

What are the dimensions of 1260GLD2-14M37?

The 1260GLD2-14M37 has a 37mm width, a 1260 mm pitch length, 90 teeth in the 14M profile.

Is 1260GLD2-14M37 interchangeable with Gates 14M belts?

Yes. The 14M curvilinear tooth, length, and width match Gates PowerGrip GT/HTD, Continental, and Dayco belts of the same size, all running on standard 14M (HTD) sprockets.

What is the temperature rating of 1260GLD2-14M37?

The 1260GLD2-14M37 is rated for continuous operation from -13°F to 176°F.

Does 1260GLD2-14M37 ship from Houston?

Yes. The 1260GLD2-14M37 ships from the Texas Belting & Supply warehouse in Houston, TX, with same-day shipping on stock items. Call (888) 203-2358 for stock and lead time.

Need a quote on 1260GLD2-14M37?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358
