Megadyne Titanium 1280TTM8M31 Timing Belt, 8M

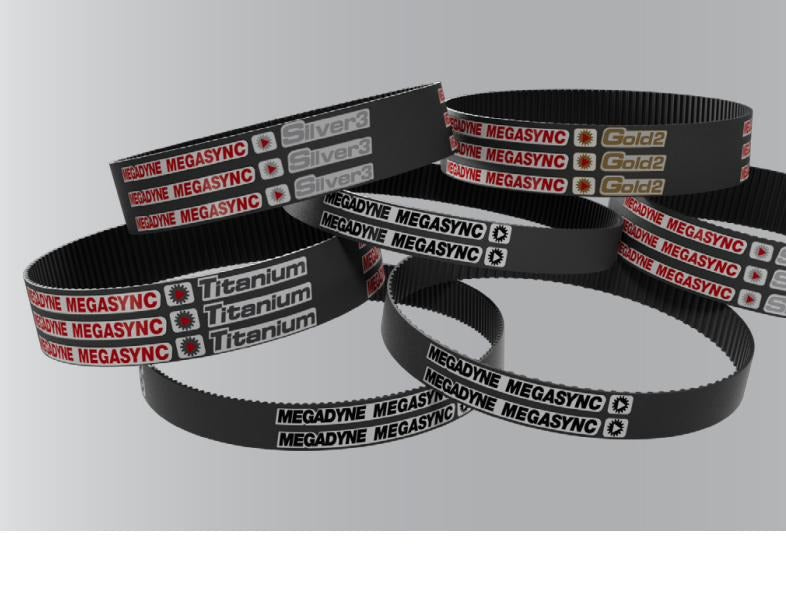

The Megadyne MEGASYNC 1280TTM8M31 is a Titanium curvilinear (HTD/RPP) synchronous timing belt with a 8M (8mm-pitch) tooth, a 1280 mm pitch length, and a 31mm width, 160 teeth. It delivers positive, slip-free power transmission for industrial drives where shaft timing matters. It replaces the equivalent Jason Industrial 1280TTM8M31.
| Specification | Value |
|---|---|
| Part Number | 1280TTM8M31 |
| Profile / Pitch | 8M |
| Construction | Rubber/Carbon |
| Tooth Profile | Curvilinear (HTD/RPP) |
| Width | 31mm |
| Thickness | 5.6mm |
| Pitch Length | 1280 mm |
| Number of Teeth | 160 |
| Performance Tier | Titanium |
| Temperature Range | -13°F to 176°F |
Applications
- Conveyors and material handling
- Pumps, mixers, and packaging machinery
- Machine tools requiring shaft synchronization
- Quiet, lubrication-free alternatives to chain or gear drives
Cross-References
The 8M curvilinear profile interchanges by pitch, length, and width with Gates PowerGrip GT3/HTD 8M, Continental Synchroforce 8M, Dayco 1280TTM8M31, and Jason Industrial 1280TTM8M31. Runs on standard 8M (HTD) sprockets. See the timing belts collection.
Frequently Asked Questions
What is the Megadyne 1280TTM8M31 used for?
The 1280TTM8M31 is used for conveyors and material handling, such as pumps, mixers, and packaging machinery and machine tools requiring shaft synchronization.
What are the dimensions of 1280TTM8M31?
The 1280TTM8M31 has a 31mm width, a 1280 mm pitch length, 160 teeth in the 8M profile.
Is 1280TTM8M31 interchangeable with Gates 8M belts?
Yes. The 8M curvilinear tooth, length, and width match Gates PowerGrip GT/HTD, Continental, and Dayco belts of the same size, all running on standard 8M (HTD) sprockets.
What is the temperature rating of 1280TTM8M31?
The 1280TTM8M31 is rated for continuous operation from -13°F to 176°F.
Does 1280TTM8M31 ship from Houston?
Yes. The 1280TTM8M31 ships from the Texas Belting & Supply warehouse in Houston, TX, with same-day shipping on stock items. Call (888) 203-2358 for stock and lead time.
Need a quote on 1280TTM8M31?
Houston warehouse, same-day shipping on stock items.
