Description
Megadyne Platinum 1778PLT14M50 Timing Belt, 14M

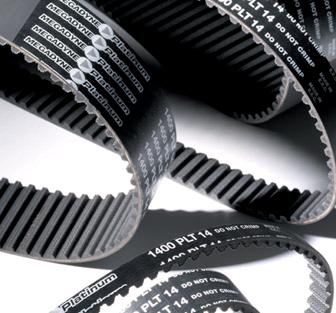

The Megadyne MEGASYNC 1778PLT14M50 is a Platinum curvilinear (HTD/RPP) synchronous timing belt with a 14M (14mm-pitch) tooth, a 1778 mm pitch length, and a 50mm width, 127 teeth. It delivers positive, slip-free power transmission for industrial drives where shaft timing matters. It replaces the equivalent Jason Industrial 1778PLT14M50.
| Specification | Value |
|---|---|
| Part Number | 1778PLT14M50 |
| Profile / Pitch | 14M |
| Construction | Rubber/Fiberglass |
| Tooth Profile | Curvilinear (HTD/RPP) |
| Width | 50mm |
| Thickness | 10.0mm |
| Pitch Length | 1778 mm |
| Number of Teeth | 127 |
| Performance Tier | Platinum |
| Temperature Range | -13°F to 176°F |
Applications
- Conveyors and material handling
- Pumps, mixers, and packaging machinery
- Machine tools requiring shaft synchronization
- Quiet, lubrication-free alternatives to chain or gear drives
Cross-References
The 14M curvilinear profile interchanges by pitch, length, and width with Gates PowerGrip GT3/HTD 14M, Continental Synchroforce 14M, Dayco 1778PLT14M50, and Jason Industrial 1778PLT14M50. Runs on standard 14M (HTD) sprockets. See the timing belts collection.
Frequently Asked Questions
What is the Megadyne 1778PLT14M50 used for?
The 1778PLT14M50 is used for conveyors and material handling, such as pumps, mixers, and packaging machinery and machine tools requiring shaft synchronization.
What are the dimensions of 1778PLT14M50?
The 1778PLT14M50 has a 50mm width, a 1778 mm pitch length, 127 teeth in the 14M profile.
Is 1778PLT14M50 interchangeable with Gates 14M belts?
Yes. The 14M curvilinear tooth, length, and width match Gates PowerGrip GT/HTD, Continental, and Dayco belts of the same size, all running on standard 14M (HTD) sprockets.
What is the temperature rating of 1778PLT14M50?
The 1778PLT14M50 is rated for continuous operation from -13°F to 176°F.
Does 1778PLT14M50 ship from Houston?
Yes. The 1778PLT14M50 ships from the Texas Belting & Supply warehouse in Houston, TX, with same-day shipping on stock items. Call (888) 203-2358 for stock and lead time.
Need a quote on 1778PLT14M50?
Houston warehouse, same-day shipping on stock items.
