Megadyne Gold 1960GLD2-14M35 Timing Belt, 14M

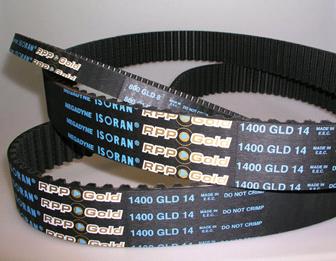

The Megadyne MEGASYNC 1960GLD2-14M35 is a Gold curvilinear (HTD/RPP) synchronous timing belt with a 14M (14mm-pitch) tooth, a 1960 mm pitch length, and a 35mm width, 140 teeth. It delivers positive, slip-free power transmission for industrial drives where shaft timing matters. It replaces the equivalent Jason Industrial 1960GLD2-14M35.
| Specification | Value |
|---|---|
| Part Number | 1960GLD2-14M35 |
| Profile / Pitch | 14M |
| Construction | Rubber/Fiberglass |
| Tooth Profile | Curvilinear (HTD/RPP) |
| Width | 35mm |
| Thickness | 10.0mm |
| Pitch Length | 1960 mm |
| Number of Teeth | 140 |
| Performance Tier | Gold |
| Temperature Range | -13°F to 176°F |
Applications
- Conveyors and material handling
- Pumps, mixers, and packaging machinery
- Machine tools requiring shaft synchronization
- Quiet, lubrication-free alternatives to chain or gear drives
Cross-References
The 14M curvilinear profile interchanges by pitch, length, and width with Gates PowerGrip GT3/HTD 14M, Continental Synchroforce 14M, Dayco 1960GLD2-14M35, and Jason Industrial 1960GLD2-14M35. Runs on standard 14M (HTD) sprockets. See the timing belts collection.
Frequently Asked Questions
What is the Megadyne 1960GLD2-14M35 used for?
The 1960GLD2-14M35 is used for conveyors and material handling, such as pumps, mixers, and packaging machinery and machine tools requiring shaft synchronization.
What are the dimensions of 1960GLD2-14M35?
The 1960GLD2-14M35 has a 35mm width, a 1960 mm pitch length, 140 teeth in the 14M profile.
Is 1960GLD2-14M35 interchangeable with Gates 14M belts?
Yes. The 14M curvilinear tooth, length, and width match Gates PowerGrip GT/HTD, Continental, and Dayco belts of the same size, all running on standard 14M (HTD) sprockets.
What is the temperature rating of 1960GLD2-14M35?
The 1960GLD2-14M35 is rated for continuous operation from -13°F to 176°F.
Does 1960GLD2-14M35 ship from Houston?
Yes. The 1960GLD2-14M35 ships from the Texas Belting & Supply warehouse in Houston, TX, with same-day shipping on stock items. Call (888) 203-2358 for stock and lead time.
