Megadyne Gold 2000GLD2-8M48 Timing Belt, 8M

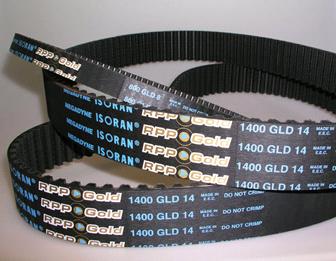

The Megadyne MEGASYNC 2000GLD2-8M48 is a Gold curvilinear (HTD/RPP) synchronous timing belt with a 8M (8mm-pitch) tooth, a 2000 mm pitch length, and a 48mm width, 250 teeth. It delivers positive, slip-free power transmission for industrial drives where shaft timing matters. It replaces the equivalent Jason Industrial 2000GLD2-8M48.
| Specification | Value |
|---|---|
| Part Number | 2000GLD2-8M48 |
| Profile / Pitch | 8M |
| Construction | Rubber/Fiberglass |
| Tooth Profile | Curvilinear (HTD/RPP) |
| Width | 48mm |
| Thickness | 5.6mm |
| Pitch Length | 2000 mm |
| Number of Teeth | 250 |
| Performance Tier | Gold |
| Temperature Range | -13°F to 176°F |
Applications
- Conveyors and material handling
- Pumps, mixers, and packaging machinery
- Machine tools requiring shaft synchronization
- Quiet, lubrication-free alternatives to chain or gear drives
Cross-References
The 8M curvilinear profile interchanges by pitch, length, and width with Gates PowerGrip GT3/HTD 8M, Continental Synchroforce 8M, Dayco 2000GLD2-8M48, and Jason Industrial 2000GLD2-8M48. Runs on standard 8M (HTD) sprockets. See the timing belts collection.
Frequently Asked Questions
What is the Megadyne 2000GLD2-8M48 used for?
The 2000GLD2-8M48 is used for conveyors and material handling, such as pumps, mixers, and packaging machinery and machine tools requiring shaft synchronization.
What are the dimensions of 2000GLD2-8M48?
The 2000GLD2-8M48 has a 48mm width, a 2000 mm pitch length, 250 teeth in the 8M profile.
Is 2000GLD2-8M48 interchangeable with Gates 8M belts?
Yes. The 8M curvilinear tooth, length, and width match Gates PowerGrip GT/HTD, Continental, and Dayco belts of the same size, all running on standard 8M (HTD) sprockets.
What is the temperature rating of 2000GLD2-8M48?
The 2000GLD2-8M48 is rated for continuous operation from -13°F to 176°F.
Does 2000GLD2-8M48 ship from Houston?
Yes. The 2000GLD2-8M48 ships from the Texas Belting & Supply warehouse in Houston, TX, with same-day shipping on stock items. Call (888) 203-2358 for stock and lead time.
