Megadyne Titanium 2000TTM8M58 Timing Belt, 8M

Save $ 95.08

Price:
$ 435.34 $ 530.42

Description

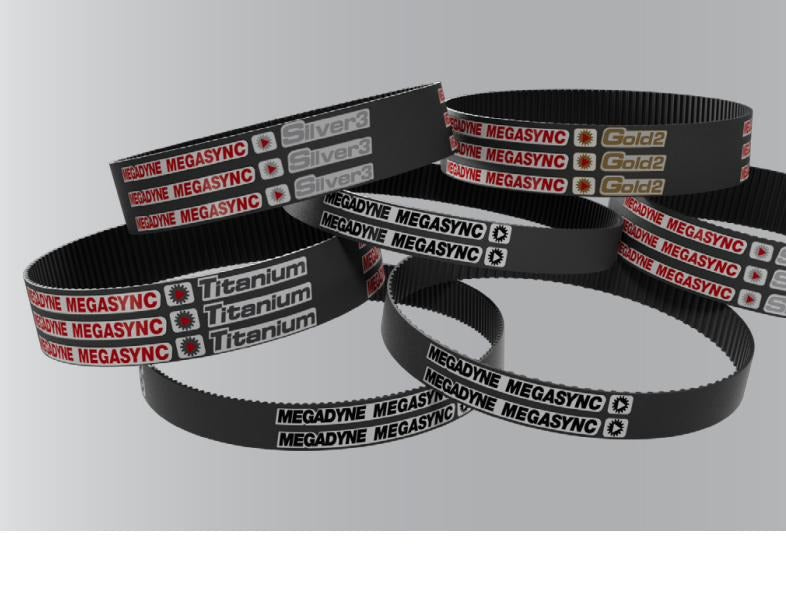

Megadyne Titanium 2000TTM8M58 Timing Belt, 8M

The Megadyne MEGASYNC 2000TTM8M58 is a Titanium curvilinear (HTD/RPP) synchronous timing belt with a 8M (8mm-pitch) tooth, a 2000 mm pitch length, and a 58mm width, 250 teeth. It delivers positive, slip-free power transmission for industrial drives where shaft timing matters. It replaces the equivalent Jason Industrial 2000TTM8M58.

Specification Value
Part Number 2000TTM8M58
Profile / Pitch 8M
Construction Rubber/Carbon
Tooth Profile Curvilinear (HTD/RPP)
Width 58mm
Thickness 5.6mm
Pitch Length 2000 mm
Number of Teeth 250
Performance Tier Titanium
Temperature Range -13°F to 176°F

Applications

  • Conveyors and material handling
  • Pumps, mixers, and packaging machinery
  • Machine tools requiring shaft synchronization
  • Quiet, lubrication-free alternatives to chain or gear drives

Cross-References

The 8M curvilinear profile interchanges by pitch, length, and width with Gates PowerGrip GT3/HTD 8M, Continental Synchroforce 8M, Dayco 2000TTM8M58, and Jason Industrial 2000TTM8M58. Runs on standard 8M (HTD) sprockets. See the timing belts collection.

Frequently Asked Questions

What is the Megadyne 2000TTM8M58 used for?

The 2000TTM8M58 is used for conveyors and material handling, such as pumps, mixers, and packaging machinery and machine tools requiring shaft synchronization.

What are the dimensions of 2000TTM8M58?

The 2000TTM8M58 has a 58mm width, a 2000 mm pitch length, 250 teeth in the 8M profile.

Is 2000TTM8M58 interchangeable with Gates 8M belts?

Yes. The 8M curvilinear tooth, length, and width match Gates PowerGrip GT/HTD, Continental, and Dayco belts of the same size, all running on standard 8M (HTD) sprockets.

What is the temperature rating of 2000TTM8M58?

The 2000TTM8M58 is rated for continuous operation from -13°F to 176°F.

Does 2000TTM8M58 ship from Houston?

Yes. The 2000TTM8M58 ships from the Texas Belting & Supply warehouse in Houston, TX, with same-day shipping on stock items. Call (888) 203-2358 for stock and lead time.

Need a quote on 2000TTM8M58?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358
