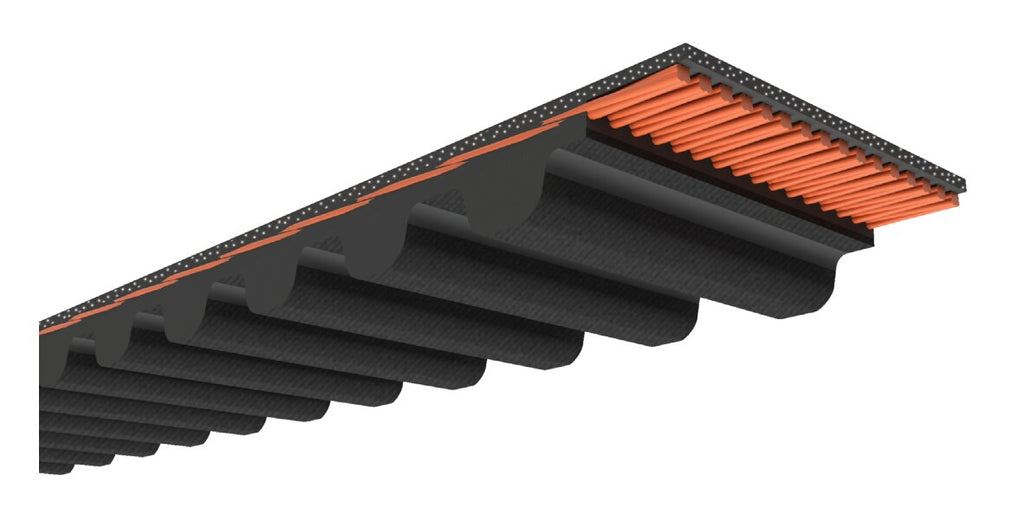

220-S5M-850 Timing Belt
The 220-S5M-850 is a timing belt from D&D Global's Dura-Sure Torque - S5M Series line. It transmits power positively with no slip, holding timing between shafts on synchronous drives.
| Specification | Value |
|---|---|
| Part Number | 220-S5M-850 |
| Belt Type | Timing Belt |
| Tooth Profile | S5M STD (curvilinear) |
| Tooth Pitch | 5 mm |
| Number of Teeth | 170 |
| Belt Width | 22 mm |
| Pitch Length | 850 mm (Pitch Length) |
| Construction | Chloroprene (Neoprene), Fiberglass cord, fabric tooth cover |
| Weight | 0.153 lb |
Applications
- Conveyors and indexing drives
- Pumps, compressors, and blowers
- Packaging, processing, and automation equipment
- Positive drives where timing must stay locked with no slip
Browse the full range in Timing Belts, or use our belt identification guide to match an existing part.
Cross-Reference
220-S5M-850 is a standardized industry size, so a 220-S5M-850 from any major manufacturer shares the same dimensions and runs on the same pulleys/sheaves. For OEM or proprietary numbers, confirm the equivalent before ordering — call (888) 203-2358.
All manufacturer names and part numbers are used for reference and identification purposes only. Texas Belting & Supply is not affiliated with, sponsored by, or endorsed by any other manufacturer.
Frequently Asked Questions
What is 220-S5M-850 used for?
220-S5M-850 is a timing belt used on positive, no-slip drives such as conveyors, pumps, packaging machinery, robotics, and machine tools. Synchronous belts hold timing between shafts, so they suit applications where slip is unacceptable.
What are the dimensions of 220-S5M-850?
220-S5M-850 has a 5 mm tooth pitch, 170 teeth, a belt width of 22 mm, and a 850 mm (Pitch Length). The pitch length is the pitch-line circumference.
What does the S5M in 220-S5M-850 mean?
S5M is a STD (curvilinear) synchronous tooth profile. The belt must match the pulley, so a S5M belt runs only on S5M pulleys.
Does 220-S5M-850 ship from Houston?
Yes. 220-S5M-850 ships from our Houston, Texas warehouse, with same-day shipping on in-stock items. Call (888) 203-2358 to confirm stock and request a quote.
Need a quote on 220-S5M-850?
Houston warehouse — same-day shipping on stock items.
