Megadyne Platinum 2240PLT14M38 Timing Belt, 14M

Save $ 139.87

Price:
$ 640.43 $ 780.30

Description

Megadyne Platinum 2240PLT14M38 Timing Belt, 14M

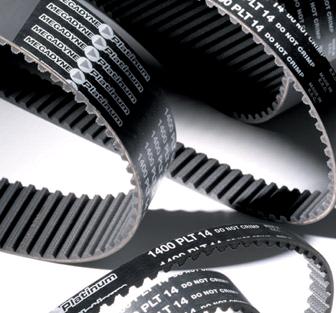

The Megadyne MEGASYNC 2240PLT14M38 is a Platinum curvilinear (HTD/RPP) synchronous timing belt with a 14M (14mm-pitch) tooth, a 2240 mm pitch length, and a 38mm width, 160 teeth. It delivers positive, slip-free power transmission for industrial drives where shaft timing matters. It replaces the equivalent Jason Industrial 2240PLT14M38.

Specification Value
Part Number 2240PLT14M38
Profile / Pitch 14M
Construction Rubber/Fiberglass
Tooth Profile Curvilinear (HTD/RPP)
Width 38mm
Thickness 10.0mm
Pitch Length 2240 mm
Number of Teeth 160
Performance Tier Platinum
Temperature Range -13°F to 176°F

Applications

  • Conveyors and material handling
  • Pumps, mixers, and packaging machinery
  • Machine tools requiring shaft synchronization
  • Quiet, lubrication-free alternatives to chain or gear drives

Cross-References

The 14M curvilinear profile interchanges by pitch, length, and width with Gates PowerGrip GT3/HTD 14M, Continental Synchroforce 14M, Dayco 2240PLT14M38, and Jason Industrial 2240PLT14M38. Runs on standard 14M (HTD) sprockets. See the timing belts collection.

Frequently Asked Questions

What is the Megadyne 2240PLT14M38 used for?

The 2240PLT14M38 is used for conveyors and material handling, such as pumps, mixers, and packaging machinery and machine tools requiring shaft synchronization.

What are the dimensions of 2240PLT14M38?

The 2240PLT14M38 has a 38mm width, a 2240 mm pitch length, 160 teeth in the 14M profile.

Is 2240PLT14M38 interchangeable with Gates 14M belts?

Yes. The 14M curvilinear tooth, length, and width match Gates PowerGrip GT/HTD, Continental, and Dayco belts of the same size, all running on standard 14M (HTD) sprockets.

What is the temperature rating of 2240PLT14M38?

The 2240PLT14M38 is rated for continuous operation from -13°F to 176°F.

Does 2240PLT14M38 ship from Houston?

Yes. The 2240PLT14M38 ships from the Texas Belting & Supply warehouse in Houston, TX, with same-day shipping on stock items. Call (888) 203-2358 for stock and lead time.

Need a quote on 2240PLT14M38?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358
