235H500 Timing Belt


Price:
$ 65.86

Description

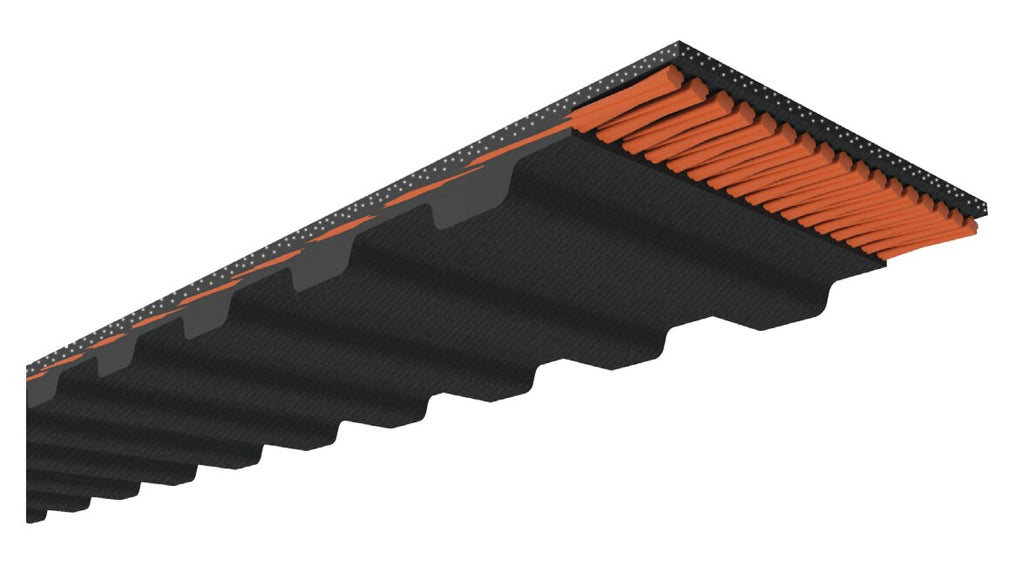

235H500 Timing Belt

The 235H500 is a timing belt from D&D Global's Dura-Premium Torque - H Series line. It transmits power positively with no slip, holding timing between shafts on synchronous drives.

Specification Value
Part Number 235H500
Belt Type Timing Belt
Tooth Profile H Trapezoidal
Tooth Pitch 12.7 mm
Number of Teeth 47
Belt Width 5 in
Pitch Length 23.5 in (Pitch Length)
Construction Chloroprene (Neoprene), Fiberglass cord, fabric tooth cover
Weight 0.763 lb

Applications

  • Conveyors and indexing drives
  • Pumps, compressors, and blowers
  • Packaging, processing, and automation equipment
  • Positive drives where timing must stay locked with no slip

Browse the full range in Timing Belts, or use our belt identification guide to match an existing part.

Cross-Reference

235H500 is a standardized industry size, so a 235H500 from any major manufacturer shares the same dimensions and runs on the same pulleys/sheaves. For OEM or proprietary numbers, confirm the equivalent before ordering — call (888) 203-2358.

All manufacturer names and part numbers are used for reference and identification purposes only. Texas Belting & Supply is not affiliated with, sponsored by, or endorsed by any other manufacturer.

Frequently Asked Questions

What is 235H500 used for?

235H500 is a timing belt used on positive, no-slip drives such as conveyors, pumps, packaging machinery, robotics, and machine tools. Synchronous belts hold timing between shafts, so they suit applications where slip is unacceptable.

What are the dimensions of 235H500?

235H500 has a 12.7 mm tooth pitch, 47 teeth, a belt width of 5 in, and a 23.5 in (Pitch Length). The pitch length is the pitch-line circumference.

What does the H in 235H500 mean?

H is a Trapezoidal synchronous tooth profile. The belt must match the pulley, so a H belt runs only on H pulleys.

Does 235H500 ship from Houston?

Yes. 235H500 ships from our Houston, Texas warehouse, with same-day shipping on in-stock items. Call (888) 203-2358 to confirm stock and request a quote.

Need a quote on 235H500?

Houston warehouse — same-day shipping on stock items.

Call (888) 203-2358
