Megadyne Platinum 2400PLT8M18 Timing Belt, 8M

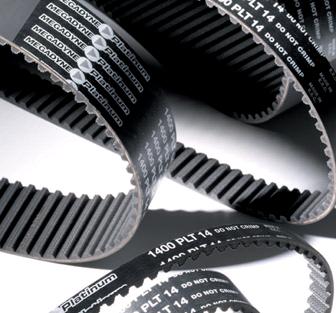

The Megadyne MEGASYNC 2400PLT8M18 is a Platinum curvilinear (HTD/RPP) synchronous timing belt with a 8M (8mm-pitch) tooth, a 2400 mm pitch length, and a 18mm width, 300 teeth. It delivers positive, slip-free power transmission for industrial drives where shaft timing matters. It replaces the equivalent Jason Industrial 2400PLT8M18.
| Specification | Value |
|---|---|
| Part Number | 2400PLT8M18 |
| Profile / Pitch | 8M |
| Construction | Rubber/Fiberglass |
| Tooth Profile | Curvilinear (HTD/RPP) |
| Width | 18mm |
| Thickness | 5.6mm |
| Pitch Length | 2400 mm |
| Number of Teeth | 300 |
| Performance Tier | Platinum |
| Temperature Range | -13°F to 176°F |
Applications
- Conveyors and material handling
- Pumps, mixers, and packaging machinery
- Machine tools requiring shaft synchronization
- Quiet, lubrication-free alternatives to chain or gear drives
Cross-References
The 8M curvilinear profile interchanges by pitch, length, and width with Gates PowerGrip GT3/HTD 8M, Continental Synchroforce 8M, Dayco 2400PLT8M18, and Jason Industrial 2400PLT8M18. Runs on standard 8M (HTD) sprockets. See the timing belts collection.
Frequently Asked Questions
What is the Megadyne 2400PLT8M18 used for?
The 2400PLT8M18 is used for conveyors and material handling, such as pumps, mixers, and packaging machinery and machine tools requiring shaft synchronization.
What are the dimensions of 2400PLT8M18?
The 2400PLT8M18 has a 18mm width, a 2400 mm pitch length, 300 teeth in the 8M profile.
Is 2400PLT8M18 interchangeable with Gates 8M belts?
Yes. The 8M curvilinear tooth, length, and width match Gates PowerGrip GT/HTD, Continental, and Dayco belts of the same size, all running on standard 8M (HTD) sprockets.
What is the temperature rating of 2400PLT8M18?
The 2400PLT8M18 is rated for continuous operation from -13°F to 176°F.
Does 2400PLT8M18 ship from Houston?
Yes. The 2400PLT8M18 ships from the Texas Belting & Supply warehouse in Houston, TX, with same-day shipping on stock items. Call (888) 203-2358 for stock and lead time.
Need a quote on 2400PLT8M18?
Houston warehouse, same-day shipping on stock items.
