Description

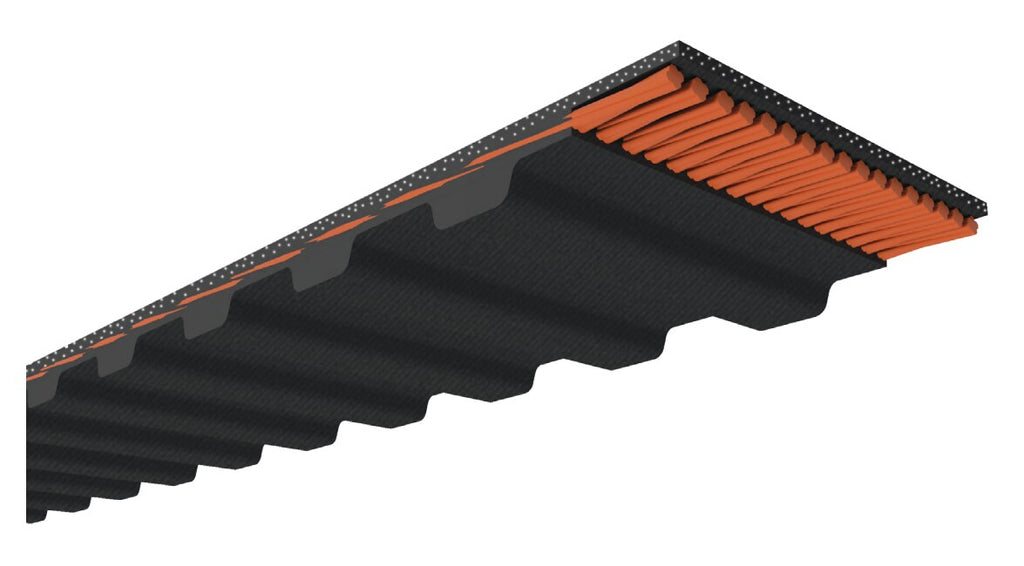

286XL1770 Timing Belt
The 286XL1770 is a timing belt from D&D Global's Dura-Premium Torque - Xl Series line. It transmits power positively with no slip, holding timing between shafts on synchronous drives.
| Specification | Value |
|---|---|
| Part Number | 286XL1770 |
| Belt Type | Timing Belt |
| Tooth Profile | XL Trapezoidal |
| Tooth Pitch | 5.08 mm |
| Number of Teeth | 143 |
| Belt Width | 17.7 in |
| Pitch Length | 28.6 in (Pitch Length) |
| Construction | Chloroprene (Neoprene), Fiberglass cord, fabric tooth cover |
| Weight | 1.587 lb |
Applications
- Conveyors and indexing drives
- Pumps, compressors, and blowers
- Packaging, processing, and automation equipment
- Positive drives where timing must stay locked with no slip
Browse the full range in Timing Belts, or use our belt identification guide to match an existing part.
Cross-Reference
286XL1770 is a standardized industry size, so a 286XL1770 from any major manufacturer shares the same dimensions and runs on the same pulleys/sheaves. For OEM or proprietary numbers, confirm the equivalent before ordering — call (888) 203-2358.
All manufacturer names and part numbers are used for reference and identification purposes only. Texas Belting & Supply is not affiliated with, sponsored by, or endorsed by any other manufacturer.
Frequently Asked Questions
What is 286XL1770 used for?
286XL1770 is a timing belt used on positive, no-slip drives such as conveyors, pumps, packaging machinery, robotics, and machine tools. Synchronous belts hold timing between shafts, so they suit applications where slip is unacceptable.
What are the dimensions of 286XL1770?
286XL1770 has a 5.08 mm tooth pitch, 143 teeth, a belt width of 17.7 in, and a 28.6 in (Pitch Length). The pitch length is the pitch-line circumference.
What does the XL in 286XL1770 mean?
XL is a Trapezoidal synchronous tooth profile. The belt must match the pulley, so a XL belt runs only on XL pulleys.
Does 286XL1770 ship from Houston?
Yes. 286XL1770 ships from our Houston, Texas warehouse, with same-day shipping on in-stock items. Call (888) 203-2358 to confirm stock and request a quote.
Need a quote on 286XL1770?
Houston warehouse — same-day shipping on stock items.
