3/BX77E Banded V-Belt


Price:
$ 146.72

Description

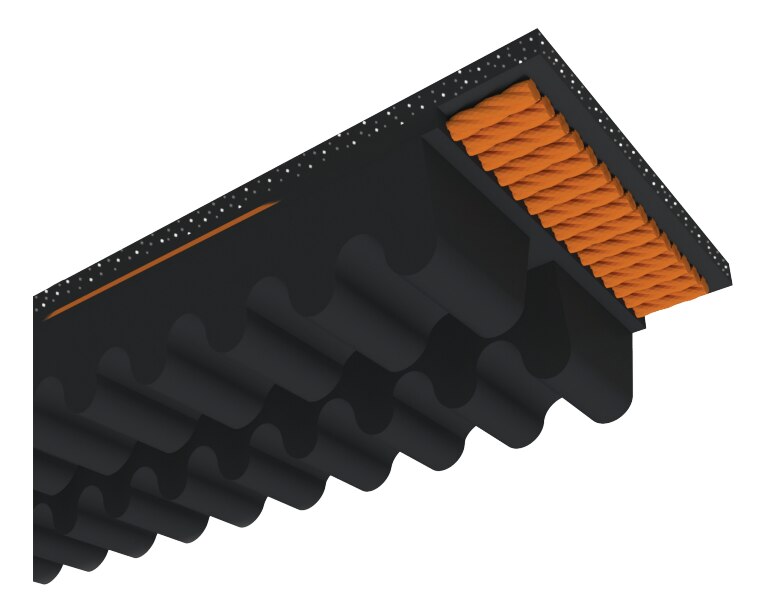

3/BX77E Banded V-Belt

The 3/BX77E is a banded v-belt from D&D Global's Elite-Extreme Band Classical - Bx Series line. It installs as a standard-section replacement on matching sheaves for industrial power transmission.

Specification Value
Part Number 3/BX77E
Belt Type Banded V-Belt (raw-edge, cogged)
Cross-Section BXE
Top Width 2.25 in
Height / Depth 0.406 in
Sheave Angle 40°
Number of Bands 3
Length 80 in (Outside Circumference)
Construction EPDM, Aramid (Kevlar) cord
Weight 2.566 lb
UPC 199453005646

Applications

  • Industrial fans, blowers, and HVAC air handlers
  • Pumps, compressors, and machine tools
  • Agricultural and aggregate equipment
  • Drives where a direct, standard-section replacement is needed

Browse the full range in Banded V-Belts, or use our belt identification guide to match an existing part.

Cross-Reference

3/BX77E is a standardized industry size, so a 3/BX77E from any major manufacturer shares the same dimensions and runs on the same pulleys/sheaves. For OEM or proprietary numbers, confirm the equivalent before ordering — call (888) 203-2358.

All manufacturer names and part numbers are used for reference and identification purposes only. Texas Belting & Supply is not affiliated with, sponsored by, or endorsed by any other manufacturer.

Frequently Asked Questions

What is 3/BX77E used for?

3/BX77E is a banded v-belt used on industrial drives — fans and blowers, HVAC, pumps, compressors, machine tools, and agricultural equipment. It installs as a standard-section replacement on matching sheaves.

What are the dimensions of 3/BX77E?

3/BX77E has a top width of 2.25 in, a 40° sheave angle and a 80 in (Outside Circumference).

What is the difference between a cogged and a wrapped V-belt?

A cogged (raw-edge) belt has notches molded into the underside so it flexes around smaller sheaves with less heat buildup, while a wrapped belt has a fabric cover. Both share the same cross-section and interchange on the same sheaves.

Does 3/BX77E ship from Houston?

Yes. 3/BX77E ships from our Houston, Texas warehouse, with same-day shipping on in-stock items. Call (888) 203-2358 to confirm stock and request a quote.

Need a quote on 3/BX77E?

Houston warehouse — same-day shipping on stock items.

Call (888) 203-2358
