Description

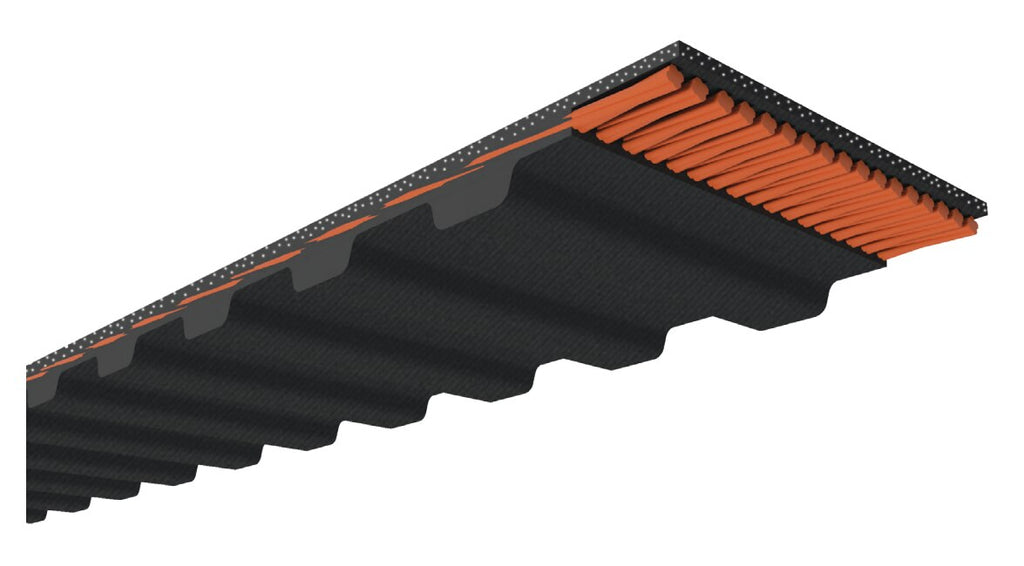

320XL100 Timing Belt
The 320XL100 is a timing belt from D&D Global's Dura-Premium Torque - Xl Series line. It transmits power positively with no slip, holding timing between shafts on synchronous drives.
| Specification | Value |
|---|---|
| Part Number | 320XL100 |
| Belt Type | Timing Belt |
| Tooth Profile | XL Trapezoidal |
| Tooth Pitch | 5.08 mm |
| Number of Teeth | 160 |
| Belt Width | 1 in |
| Pitch Length | 32 in (Pitch Length) |
| Construction | Chloroprene (Neoprene), Fiberglass cord, fabric tooth cover |
| Weight | 0.1 lb |
| UPC | 190859293569 |
Applications
- Conveyors and indexing drives
- Pumps, compressors, and blowers
- Packaging, processing, and automation equipment
- Positive drives where timing must stay locked with no slip
Browse the full range in Timing Belts, or use our belt identification guide to match an existing part.
Cross-Reference
320XL100 is a standardized industry size, so a 320XL100 from any major manufacturer shares the same dimensions and runs on the same pulleys/sheaves. For OEM or proprietary numbers, confirm the equivalent before ordering — call (888) 203-2358.
All manufacturer names and part numbers are used for reference and identification purposes only. Texas Belting & Supply is not affiliated with, sponsored by, or endorsed by any other manufacturer.
Frequently Asked Questions
What is 320XL100 used for?
320XL100 is a timing belt used on positive, no-slip drives such as conveyors, pumps, packaging machinery, robotics, and machine tools. Synchronous belts hold timing between shafts, so they suit applications where slip is unacceptable.
What are the dimensions of 320XL100?
320XL100 has a 5.08 mm tooth pitch, 160 teeth, a belt width of 1 in, and a 32 in (Pitch Length). The pitch length is the pitch-line circumference.
What does the XL in 320XL100 mean?
XL is a Trapezoidal synchronous tooth profile. The belt must match the pulley, so a XL belt runs only on XL pulleys.
Does 320XL100 ship from Houston?
Yes. 320XL100 ships from our Houston, Texas warehouse, with same-day shipping on in-stock items. Call (888) 203-2358 to confirm stock and request a quote.
