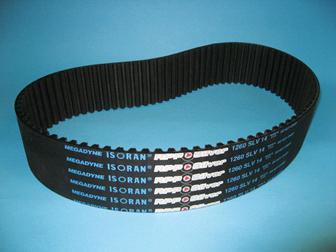

Megadyne Silver 3500SLV3-14M170 Timing Belt, 14M

Save $ 493.06

Price:
$ 2,257.61 $ 2,750.67

Description

Megadyne Silver 3500SLV3-14M170 Timing Belt, 14M

The Megadyne MEGASYNC 3500SLV3-14M170 is a Silver curvilinear (HTD/RPP) synchronous timing belt with a 14M (14mm-pitch) tooth, a 3500 mm pitch length, and a 170mm width, 250 teeth. It delivers positive, slip-free power transmission for industrial drives where shaft timing matters. It replaces the equivalent Jason Industrial 3500SLV3-14M170.

Specification Value
Part Number 3500SLV3-14M170
Profile / Pitch 14M
Construction Rubber/Fiberglass
Tooth Profile Curvilinear (HTD/RPP)
Width 170mm
Thickness 10.0mm
Pitch Length 3500 mm
Number of Teeth 250
Performance Tier Silver
Temperature Range -13°F to 176°F

Applications

  • Conveyors and material handling
  • Pumps, mixers, and packaging machinery
  • Machine tools requiring shaft synchronization
  • Quiet, lubrication-free alternatives to chain or gear drives

Cross-References

The 14M curvilinear profile interchanges by pitch, length, and width with Gates PowerGrip GT3/HTD 14M, Continental Synchroforce 14M, Dayco 3500SLV3-14M170, and Jason Industrial 3500SLV3-14M170. Runs on standard 14M (HTD) sprockets. See the timing belts collection.

Frequently Asked Questions

What is the Megadyne 3500SLV3-14M170 used for?

The 3500SLV3-14M170 is used for conveyors and material handling, such as pumps, mixers, and packaging machinery and machine tools requiring shaft synchronization.

What are the dimensions of 3500SLV3-14M170?

The 3500SLV3-14M170 has a 170mm width, a 3500 mm pitch length, 250 teeth in the 14M profile.

Is 3500SLV3-14M170 interchangeable with Gates 14M belts?

Yes. The 14M curvilinear tooth, length, and width match Gates PowerGrip GT/HTD, Continental, and Dayco belts of the same size, all running on standard 14M (HTD) sprockets.

What is the temperature rating of 3500SLV3-14M170?

The 3500SLV3-14M170 is rated for continuous operation from -13°F to 176°F.

Does 3500SLV3-14M170 ship from Houston?

Yes. The 3500SLV3-14M170 ships from the Texas Belting & Supply warehouse in Houston, TX, with same-day shipping on stock items. Call (888) 203-2358 for stock and lead time.

Need a quote on 3500SLV3-14M170?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358
