D&D Global 3800-20M-170 Timing Belt — 20M Section, 170mm Wide, 190T, 3800mm

Save $ 606.33

Price:
$ 2,021.10 $ 2,627.43

Description

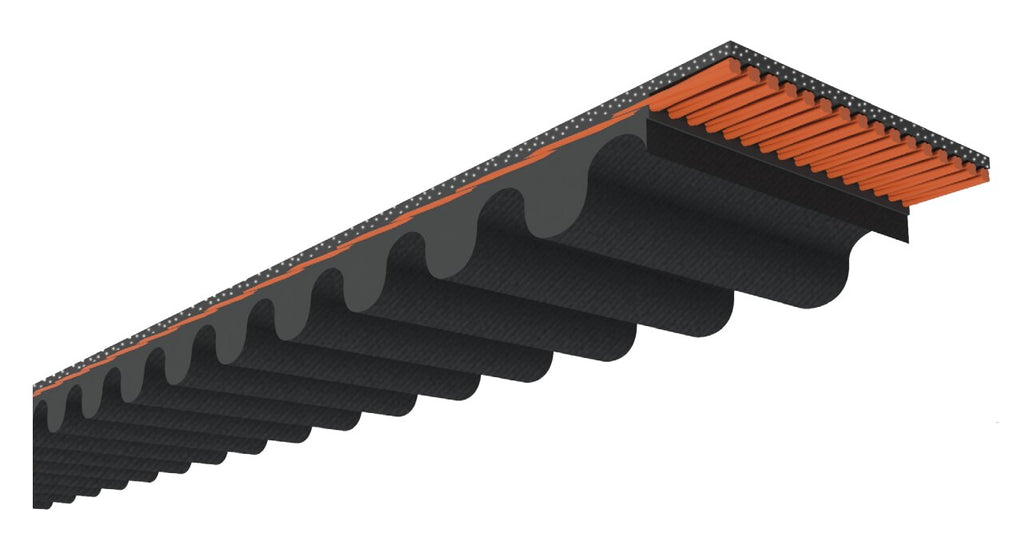

The D&D Global 3800-20M-170 is a synchronous timing belt with 20M-pitch profile, manufactured by D&D Global.

This belt uses a curved HTD (High Torque Drive) tooth profile for improved tooth shear strength and higher load capacity.

Constructed with Neoprene body and fiberglass cord tensile cord for precise positioning and dependable synchronous power transmission.

Specifications

Pitch Profile 20M
Pitch 20.0 mm
Tooth Profile Curved (HTD)
Tooth Location Single Side
Number of Teeth 190
Width 170mm
Length 3800 mm
Material Neoprene
Reinforcement Fiberglass Cord
Color Black
Temperature Range -30°F to 185°F
