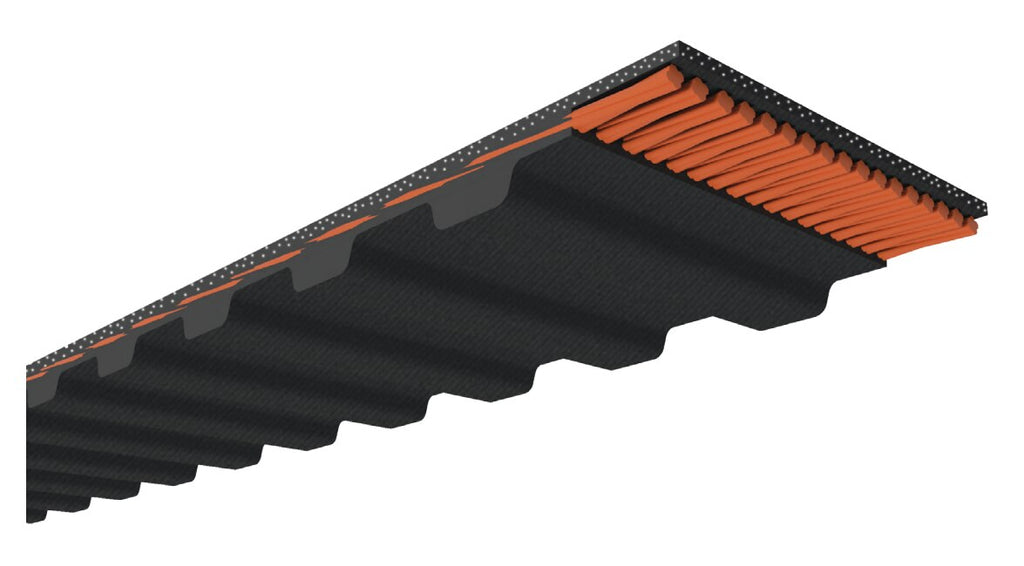

396XL025 Timing Belt


Price:
$ 5.80

Description

396XL025 Timing Belt

The 396XL025 is a timing belt from D&D Global's Dura-Premium Torque - Xl Series line. It transmits power positively with no slip, holding timing between shafts on synchronous drives.

Specification Value
Part Number 396XL025
Belt Type Timing Belt
Tooth Profile XL Trapezoidal
Tooth Pitch 5.08 mm
Number of Teeth 198
Belt Width 0.25 in
Pitch Length 39.6 in (Pitch Length)
Construction Chloroprene (Neoprene), Fiberglass cord, fabric tooth cover
Weight 0.031 lb
UPC 190859504023

Applications

  • Conveyors and indexing drives
  • Pumps, compressors, and blowers
  • Packaging, processing, and automation equipment
  • Positive drives where timing must stay locked with no slip

Browse the full range in Timing Belts, or use our belt identification guide to match an existing part.

Cross-Reference

396XL025 is a standardized industry size, so a 396XL025 from any major manufacturer shares the same dimensions and runs on the same pulleys/sheaves. For OEM or proprietary numbers, confirm the equivalent before ordering — call (888) 203-2358.

All manufacturer names and part numbers are used for reference and identification purposes only. Texas Belting & Supply is not affiliated with, sponsored by, or endorsed by any other manufacturer.

Frequently Asked Questions

What is 396XL025 used for?

396XL025 is a timing belt used on positive, no-slip drives such as conveyors, pumps, packaging machinery, robotics, and machine tools. Synchronous belts hold timing between shafts, so they suit applications where slip is unacceptable.

What are the dimensions of 396XL025?

396XL025 has a 5.08 mm tooth pitch, 198 teeth, a belt width of 0.25 in, and a 39.6 in (Pitch Length). The pitch length is the pitch-line circumference.

What does the XL in 396XL025 mean?

XL is a Trapezoidal synchronous tooth profile. The belt must match the pulley, so a XL belt runs only on XL pulleys.

Does 396XL025 ship from Houston?

Yes. 396XL025 ships from our Houston, Texas warehouse, with same-day shipping on in-stock items. Call (888) 203-2358 to confirm stock and request a quote.

Need a quote on 396XL025?

Houston warehouse — same-day shipping on stock items.

Call (888) 203-2358
