Description

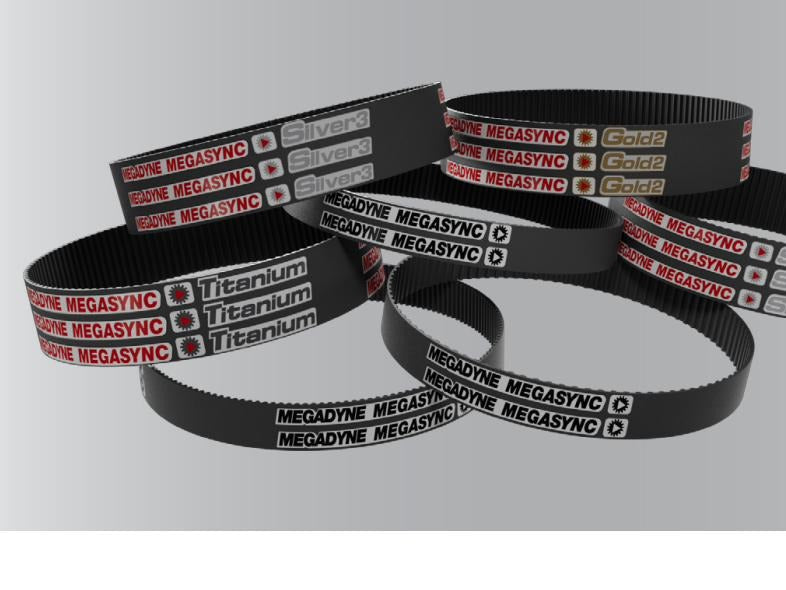

Megadyne Titanium 4410TTM14M65 Timing Belt, 14M
The Megadyne MEGASYNC 4410TTM14M65 is a Titanium curvilinear (HTD/RPP) synchronous timing belt with a 14M (14mm-pitch) tooth, a 4410 mm pitch length, and a 65mm width, 315 teeth. It delivers positive, slip-free power transmission for industrial drives where shaft timing matters. It replaces the equivalent Jason Industrial 4410TTM14M65.
| Specification | Value |
|---|---|
| Part Number | 4410TTM14M65 |
| Profile / Pitch | 14M |
| Construction | Rubber/Carbon |
| Tooth Profile | Curvilinear (HTD/RPP) |
| Width | 65mm |
| Thickness | 10.0mm |
| Pitch Length | 4410 mm |
| Number of Teeth | 315 |
| Performance Tier | Titanium |
| Temperature Range | -13°F to 176°F |
Applications
- Conveyors and material handling
- Pumps, mixers, and packaging machinery
- Machine tools requiring shaft synchronization
- Quiet, lubrication-free alternatives to chain or gear drives
Cross-References
The 14M curvilinear profile interchanges by pitch, length, and width with Gates PowerGrip GT3/HTD 14M, Continental Synchroforce 14M, Dayco 4410TTM14M65, and Jason Industrial 4410TTM14M65. Runs on standard 14M (HTD) sprockets. See the timing belts collection.
Frequently Asked Questions
What is the Megadyne 4410TTM14M65 used for?
The 4410TTM14M65 is used for conveyors and material handling, such as pumps, mixers, and packaging machinery and machine tools requiring shaft synchronization.
What are the dimensions of 4410TTM14M65?
The 4410TTM14M65 has a 65mm width, a 4410 mm pitch length, 315 teeth in the 14M profile.
Is 4410TTM14M65 interchangeable with Gates 14M belts?
Yes. The 14M curvilinear tooth, length, and width match Gates PowerGrip GT/HTD, Continental, and Dayco belts of the same size, all running on standard 14M (HTD) sprockets.
What is the temperature rating of 4410TTM14M65?
The 4410TTM14M65 is rated for continuous operation from -13°F to 176°F.
Does 4410TTM14M65 ship from Houston?
Yes. The 4410TTM14M65 ships from the Texas Belting & Supply warehouse in Houston, TX, with same-day shipping on stock items. Call (888) 203-2358 for stock and lead time.
