Megadyne Platinum 544PLT8M13 Timing Belt, 8M

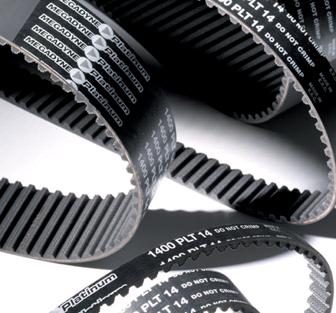

The Megadyne MEGASYNC 544PLT8M13 is a Platinum curvilinear (HTD/RPP) synchronous timing belt with a 8M (8mm-pitch) tooth, a 544 mm pitch length, and a 13mm width, 68 teeth. It delivers positive, slip-free power transmission for industrial drives where shaft timing matters. It replaces the equivalent Jason Industrial 544PLT8M13.
| Specification | Value |
|---|---|
| Part Number | 544PLT8M13 |
| Profile / Pitch | 8M |
| Construction | Rubber/Fiberglass |
| Tooth Profile | Curvilinear (HTD/RPP) |
| Width | 13mm |
| Thickness | 5.6mm |
| Pitch Length | 544 mm |
| Number of Teeth | 68 |
| Performance Tier | Platinum |
| Temperature Range | -13°F to 176°F |
Applications
- Conveyors and material handling
- Pumps, mixers, and packaging machinery
- Machine tools requiring shaft synchronization
- Quiet, lubrication-free alternatives to chain or gear drives
Cross-References
The 8M curvilinear profile interchanges by pitch, length, and width with Gates PowerGrip GT3/HTD 8M, Continental Synchroforce 8M, Dayco 544PLT8M13, and Jason Industrial 544PLT8M13. Runs on standard 8M (HTD) sprockets. See the timing belts collection.
Frequently Asked Questions
What is the Megadyne 544PLT8M13 used for?
The 544PLT8M13 is used for conveyors and material handling, such as pumps, mixers, and packaging machinery and machine tools requiring shaft synchronization.
What are the dimensions of 544PLT8M13?
The 544PLT8M13 has a 13mm width, a 544 mm pitch length, 68 teeth in the 8M profile.
Is 544PLT8M13 interchangeable with Gates 8M belts?
Yes. The 8M curvilinear tooth, length, and width match Gates PowerGrip GT/HTD, Continental, and Dayco belts of the same size, all running on standard 8M (HTD) sprockets.
What is the temperature rating of 544PLT8M13?
The 544PLT8M13 is rated for continuous operation from -13°F to 176°F.
Does 544PLT8M13 ship from Houston?
Yes. The 544PLT8M13 ships from the Texas Belting & Supply warehouse in Houston, TX, with same-day shipping on stock items. Call (888) 203-2358 for stock and lead time.
Need a quote on 544PLT8M13?
Houston warehouse, same-day shipping on stock items.
