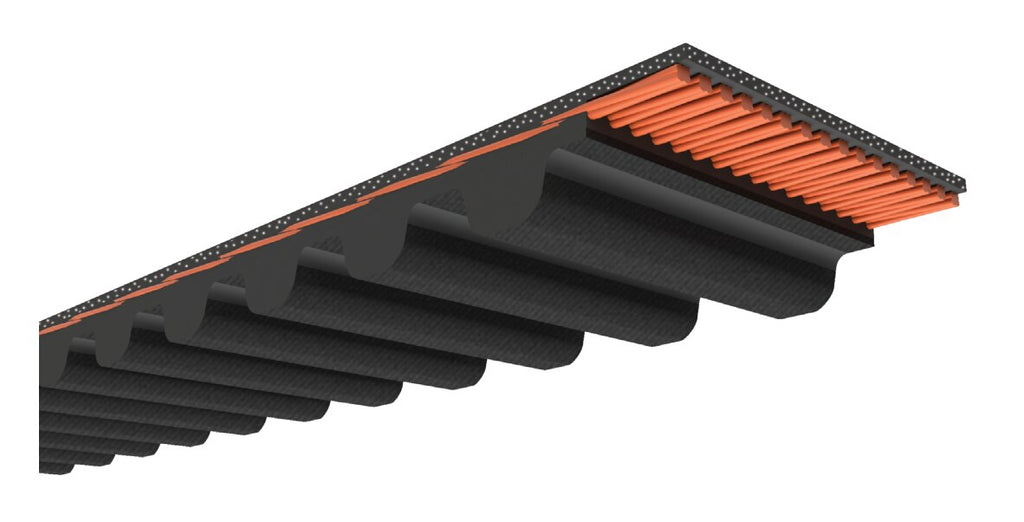

75-S4.5M-504 Timing Belt
The 75-S4.5M-504 is a timing belt from D&D Global's Dura-Sure Torque - S4.5M Series line. It transmits power positively with no slip, holding timing between shafts on synchronous drives.
| Specification | Value |
|---|---|
| Part Number | 75-S4.5M-504 |
| Belt Type | Timing Belt |
| Tooth Profile | S4.5M STD (curvilinear) |
| Tooth Pitch | 4.5 mm |
| Number of Teeth | 112 |
| Belt Width | 7.5 mm |
| Pitch Length | 504 mm (Pitch Length) |
| Construction | Chloroprene (Neoprene), Fiberglass cord, fabric tooth cover |
| Weight | 0.037 lb |
| UPC | 190859149101 |
Applications
- Conveyors and indexing drives
- Pumps, compressors, and blowers
- Packaging, processing, and automation equipment
- Positive drives where timing must stay locked with no slip
Browse the full range in Timing Belts, or use our belt identification guide to match an existing part.
Cross-Reference
75-S4.5M-504 is a standardized industry size, so a 75-S4.5M-504 from any major manufacturer shares the same dimensions and runs on the same pulleys/sheaves. For OEM or proprietary numbers, confirm the equivalent before ordering — call (888) 203-2358.
All manufacturer names and part numbers are used for reference and identification purposes only. Texas Belting & Supply is not affiliated with, sponsored by, or endorsed by any other manufacturer.
Frequently Asked Questions
What is 75-S4.5M-504 used for?
75-S4.5M-504 is a timing belt used on positive, no-slip drives such as conveyors, pumps, packaging machinery, robotics, and machine tools. Synchronous belts hold timing between shafts, so they suit applications where slip is unacceptable.
What are the dimensions of 75-S4.5M-504?
75-S4.5M-504 has a 4.5 mm tooth pitch, 112 teeth, a belt width of 7.5 mm, and a 504 mm (Pitch Length). The pitch length is the pitch-line circumference.
What does the S4.5M in 75-S4.5M-504 mean?
S4.5M is a STD (curvilinear) synchronous tooth profile. The belt must match the pulley, so a S4.5M belt runs only on S4.5M pulleys.
Does 75-S4.5M-504 ship from Houston?
Yes. 75-S4.5M-504 ships from our Houston, Texas warehouse, with same-day shipping on in-stock items. Call (888) 203-2358 to confirm stock and request a quote.
Need a quote on 75-S4.5M-504?
Houston warehouse — same-day shipping on stock items.
