820H100 Timing Belt


Price:
$ 45.23

Description

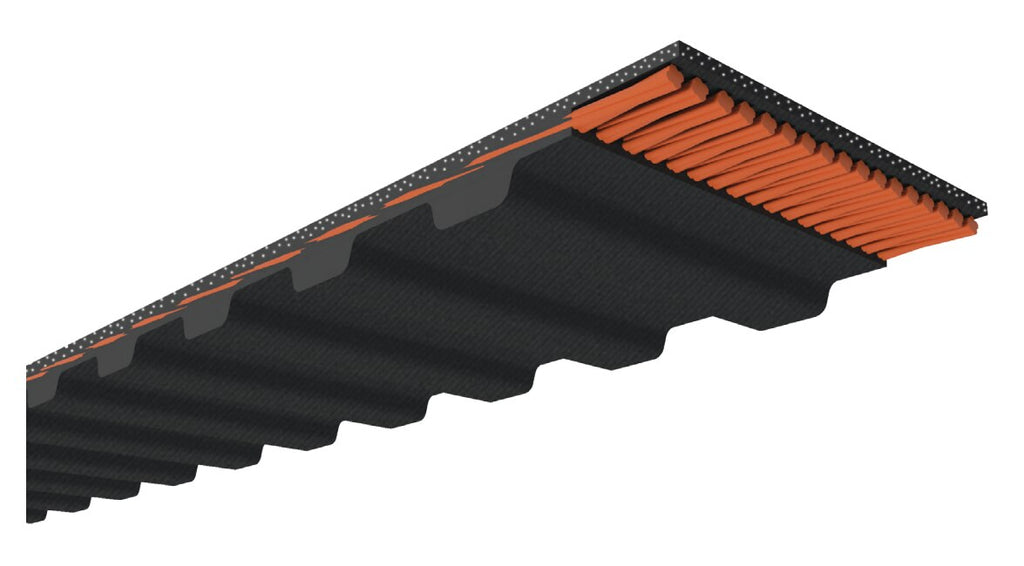

820H100 Timing Belt

The 820H100 is a timing belt from D&D Global's Dura-Premium Torque - H Series line. It transmits power positively with no slip, holding timing between shafts on synchronous drives.

Specification Value
Part Number 820H100
Belt Type Timing Belt
Tooth Profile H Trapezoidal
Tooth Pitch 12.7 mm
Number of Teeth 164
Belt Width 1 in
Pitch Length 82 in (Pitch Length)
Construction Chloroprene (Neoprene), Fiberglass cord, fabric tooth cover
Weight 0.533 lb
UPC 190859272304

Applications

  • Conveyors and indexing drives
  • Pumps, compressors, and blowers
  • Packaging, processing, and automation equipment
  • Positive drives where timing must stay locked with no slip

Browse the full range in Timing Belts, or use our belt identification guide to match an existing part.

Cross-Reference

820H100 is a standardized industry size, so a 820H100 from any major manufacturer shares the same dimensions and runs on the same pulleys/sheaves. For OEM or proprietary numbers, confirm the equivalent before ordering — call (888) 203-2358.

All manufacturer names and part numbers are used for reference and identification purposes only. Texas Belting & Supply is not affiliated with, sponsored by, or endorsed by any other manufacturer.

Frequently Asked Questions

What is 820H100 used for?

820H100 is a timing belt used on positive, no-slip drives such as conveyors, pumps, packaging machinery, robotics, and machine tools. Synchronous belts hold timing between shafts, so they suit applications where slip is unacceptable.

What are the dimensions of 820H100?

820H100 has a 12.7 mm tooth pitch, 164 teeth, a belt width of 1 in, and a 82 in (Pitch Length). The pitch length is the pitch-line circumference.

What does the H in 820H100 mean?

H is a Trapezoidal synchronous tooth profile. The belt must match the pulley, so a H belt runs only on H pulleys.

Does 820H100 ship from Houston?

Yes. 820H100 ships from our Houston, Texas warehouse, with same-day shipping on in-stock items. Call (888) 203-2358 to confirm stock and request a quote.

Need a quote on 820H100?

Houston warehouse — same-day shipping on stock items.

Call (888) 203-2358
