APE143T-1.5-2 — Electric Motor


Price:
$ 245.20

Description

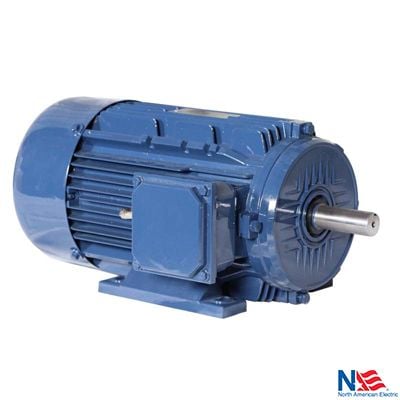

APE143T-1.5-2 — Electric Motor

The APE143T-1.5-2 is a 1.5 hp, 3600 rpm, 3-phase, 230/460v, 143t frame, tefc electric motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number APE143T-1.5-2
Horsepower (HP) 1.5
Speed (RPM) 3600
Phase Three-Phase
Voltage 230/460
Frequency 60 HZ
NEMA Frame 143T
Enclosure TEFC
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the APE143T-1.5-2 used for?

The APE143T-1.5-2 is a 1.5 hp, 3600 rpm, 3-phase, 230/460v, 143t frame, tefc electric motor used for industrial machinery and oem equipment and similar loads.

What frame is the APE143T-1.5-2?

The APE143T-1.5-2 uses a NEMA 143T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the APE143T-1.5-2 run on?

The APE143T-1.5-2 is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the APE143T-1.5-2 ship?

Most in-stock units of the APE143T-1.5-2 ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on APE143T-1.5-2?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
