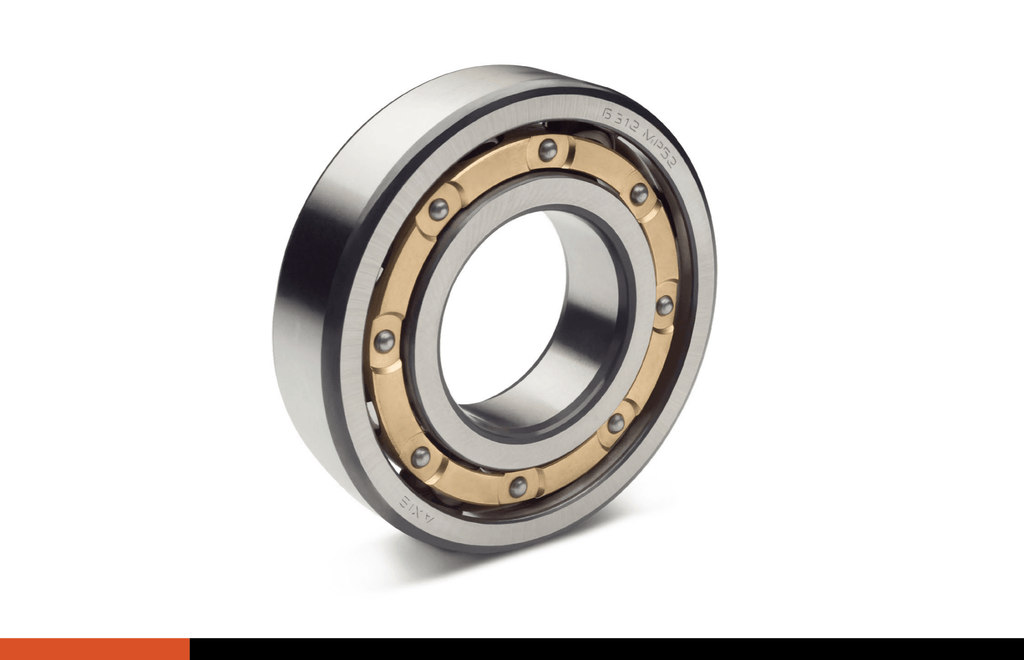

Axis 87503 Ball Bearing - 17.0mm Bore


Price:
$ 19.78

Description

The Axis 87503 is a radial ball bearing engineered for reliable performance in industrial applications. With a 17.0mm bore and 40mm outside diameter, this bearing is designed for precision fit and long service life. Rated for 1,940 lbf dynamic load capacity, it handles demanding operational requirements.

Specifications
Bore (d) 17.0 mm
Outside Diameter (D) 40 mm
Overall Width (B) 0.563 in
Dynamic Load Rating (Cr) 1,940 lbf
Static Load Rating (Cor) 976 lbf
Limiting Speed (Grease) 9,600 RPM
Series 87000 series

Specification reference: Axis manufacturer catalog, 2014 edition, 87000 series, page 31. Overall width is listed in inches; bore and outside diameter are listed in millimeters. Speed is the catalog grease-lubrication limit, not separate open, shielded, or sealed ratings.

Applications

Suitable for general industrial machinery, conveyor systems, pumps, motors, gearboxes, agricultural equipment, and material handling systems. Axis bearings are a trusted choice for maintenance professionals across multiple industries.
