Description

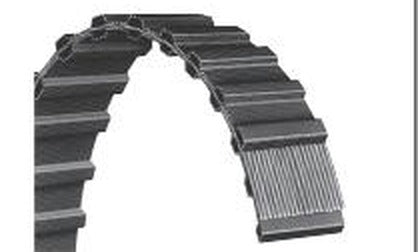

Bando 1050DH100G DH Trapezoidal Double-Sided TB
The Bando 1050DH100G is a DH trapezoidal double-sided tb with a 105.0 in (2667.0 mm) pitch length, 1.0 in (25.4 mm) width, and 210 teeth. Built on a neoprene body with fiberglass cords, it delivers zero-slip, fixed-ratio synchronous power transmission. Stocked for maintenance, reliability, and procurement teams.
| Specification | Value |
|---|---|
| Part Number | 1050DH100G |
| Belt Type | Trapezoidal Double-Sided TB |
| Pitch (Section) | DH |
| Pitch Length | 105.0 in (2667.0 mm) |
| Number of Teeth | 210 |
| Top Width | 1.0 in (25.4 mm) |
| Thickness | 0.234 in (5.9 mm) |
| Body Material | Neoprene |
| Tension Cord | Fiberglass |
| Construction | Synchronous (trapezoidal) |
| Brand | Bando |
Applications
- High-torque synchronous drives requiring zero slip and fixed timing
- Industrial pumps, blowers, and compressors
- Conveyor and material-handling drive systems
- Machine tools, packaging equipment, and process machinery
Frequently Asked Questions
What is the Bando 1050DH100G used for?
It is a DH trapezoidal double-sided tb that delivers zero-slip, fixed-ratio synchronous power transmission. Typical uses include high-torque synchronous drives requiring zero slip and fixed timing and industrial pumps, blowers, and compressors.
What is the pitch and tooth count of 1050DH100G?
The belt has a tooth pitch, a 2667.0 mm (105.0 in) pitch length, and 210 teeth.
How is the Bando 1050DH100G constructed?
It uses neoprene construction with fiberglass tension cords in a synchronous (trapezoidal) design.
Does 1050DH100G ship from Houston?
Yes. In-stock belts ship from our Houston, TX warehouse, typically same day on stock items.
