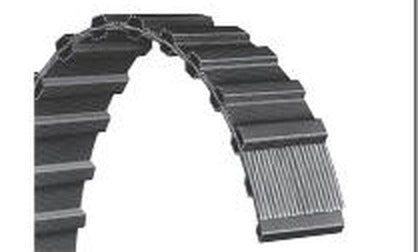

Bando 1200-D8M-20 H D8M Double-Sided HT Timing Belt
The Bando 1200-D8M-20 H is a D8M double-sided ht timing belt with a 1200.0 mm (47.24 in) pitch length, 20.0 mm (0.79 in) width, and 150 teeth. Built on a neoprene body with fiberglass cords, it delivers zero-slip, fixed-ratio synchronous power transmission. Stocked for maintenance, reliability, and procurement teams.
| Specification | Value |
|---|---|
| Part Number | 1200-D8M-20 H |
| Belt Type | Double-Sided HT Timing Belt |
| Pitch (Section) | 8 mm (D8M) |
| Pitch Length | 1200.0 mm (47.24 in) |
| Number of Teeth | 150 |
| Top Width | 20.0 mm (0.79 in) |
| Thickness | 8.2 mm (0.323 in) |
| Body Material | Neoprene |
| Tension Cord | Fiberglass |
| Construction | Synchronous (double-sided) |
| Brand | Bando |
Applications
- High-torque synchronous drives requiring zero slip and fixed timing
- Industrial pumps, blowers, and compressors
- Conveyor and material-handling drive systems
- Machine tools, packaging equipment, and process machinery
Frequently Asked Questions
What is the Bando 1200-D8M-20 H used for?
It is a D8M double-sided ht timing belt that delivers zero-slip, fixed-ratio synchronous power transmission. Typical uses include high-torque synchronous drives requiring zero slip and fixed timing and industrial pumps, blowers, and compressors.
What is the pitch and tooth count of 1200-D8M-20 H?
The belt has a 8 mm tooth pitch, a 1200.0 mm (47.24 in) pitch length, and 150 teeth.
How is the Bando 1200-D8M-20 H constructed?
It uses neoprene construction with fiberglass tension cords in a synchronous (double-sided) design.
Does 1200-D8M-20 H ship from Houston?
Yes. In-stock belts ship from our Houston, TX warehouse, typically same day on stock items.
