Description

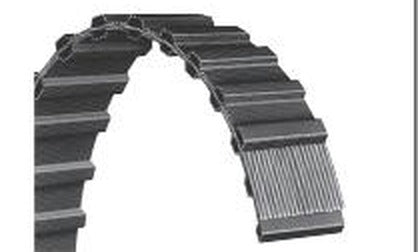

Bando 1500-D5M-25 H D5M Double-Sided HT Timing Belt
The Bando 1500-D5M-25 H is a D5M double-sided ht timing belt with a 1500.0 mm (59.06 in) pitch length, 25.0 mm (0.98 in) width, and 300 teeth. Built on a neoprene body with fiberglass cords, it delivers zero-slip, fixed-ratio synchronous power transmission. Stocked for maintenance, reliability, and procurement teams.
| Specification | Value |
|---|---|
| Part Number | 1500-D5M-25 H |
| Belt Type | Double-Sided HT Timing Belt |
| Pitch (Section) | 5 mm (D5M) |
| Pitch Length | 1500.0 mm (59.06 in) |
| Number of Teeth | 300 |
| Top Width | 25.0 mm (0.98 in) |
| Thickness | 5.4 mm (0.213 in) |
| Body Material | Neoprene |
| Tension Cord | Fiberglass |
| Construction | Synchronous (double-sided) |
| Brand | Bando |
Applications
- High-torque synchronous drives requiring zero slip and fixed timing
- Industrial pumps, blowers, and compressors
- Conveyor and material-handling drive systems
- Machine tools, packaging equipment, and process machinery
Frequently Asked Questions
What is the Bando 1500-D5M-25 H used for?
It is a D5M double-sided ht timing belt that delivers zero-slip, fixed-ratio synchronous power transmission. Typical uses include high-torque synchronous drives requiring zero slip and fixed timing and industrial pumps, blowers, and compressors.
What is the pitch and tooth count of 1500-D5M-25 H?
The belt has a 5 mm tooth pitch, a 1500.0 mm (59.06 in) pitch length, and 300 teeth.
How is the Bando 1500-D5M-25 H constructed?
It uses neoprene construction with fiberglass tension cords in a synchronous (double-sided) design.
Does 1500-D5M-25 H ship from Houston?
Yes. In-stock belts ship from our Houston, TX warehouse, typically same day on stock items.
