Description

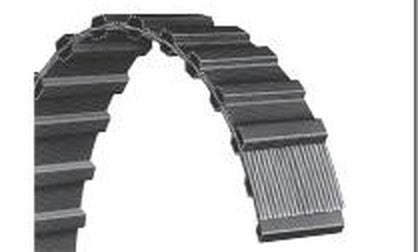

Bando 245DH300G DH Trapezoidal Double-Sided TB
The Bando 245DH300G is a DH trapezoidal double-sided tb with a 24.5 in (622.3 mm) pitch length, 3.0 in (76.2 mm) width, and 49 teeth. Built on a neoprene body with fiberglass cords, it delivers zero-slip, fixed-ratio synchronous power transmission. Stocked for maintenance, reliability, and procurement teams.
| Specification | Value |
|---|---|
| Part Number | 245DH300G |
| Belt Type | Trapezoidal Double-Sided TB |
| Pitch (Section) | DH |
| Pitch Length | 24.5 in (622.3 mm) |
| Number of Teeth | 49 |
| Top Width | 3.0 in (76.2 mm) |
| Thickness | 0.234 in (5.9 mm) |
| Body Material | Neoprene |
| Tension Cord | Fiberglass |
| Construction | Synchronous (trapezoidal) |
| Brand | Bando |
Applications
- High-torque synchronous drives requiring zero slip and fixed timing
- Industrial pumps, blowers, and compressors
- Conveyor and material-handling drive systems
- Machine tools, packaging equipment, and process machinery
Frequently Asked Questions
What is the Bando 245DH300G used for?
It is a DH trapezoidal double-sided tb that delivers zero-slip, fixed-ratio synchronous power transmission. Typical uses include high-torque synchronous drives requiring zero slip and fixed timing and industrial pumps, blowers, and compressors.
What is the pitch and tooth count of 245DH300G?
The belt has a tooth pitch, a 622.3 mm (24.5 in) pitch length, and 49 teeth.
How is the Bando 245DH300G constructed?
It uses neoprene construction with fiberglass tension cords in a synchronous (trapezoidal) design.
Does 245DH300G ship from Houston?
Yes. In-stock belts ship from our Houston, TX warehouse, typically same day on stock items.
Need a quote on 245DH300G?
Houston warehouse — same-day shipping on stock items.
Call (888) 203-2358Buying in bulk? Save on volume.
Multi-belt and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Call (888) 203-2358Email sales@texasbelting.comBrowse all Bando timing belts.
