Description

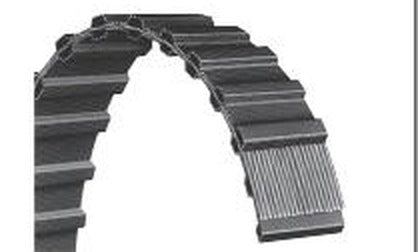

Bando 700DH200G DH Trapezoidal Double-Sided TB
The Bando 700DH200G is a DH trapezoidal double-sided tb with a 70.0 in (1778.0 mm) pitch length, 2.0 in (50.8 mm) width, and 140 teeth. Built on a neoprene body with fiberglass cords, it delivers zero-slip, fixed-ratio synchronous power transmission. Stocked for maintenance, reliability, and procurement teams.
| Specification | Value |
|---|---|
| Part Number | 700DH200G |
| Belt Type | Trapezoidal Double-Sided TB |
| Pitch (Section) | DH |
| Pitch Length | 70.0 in (1778.0 mm) |
| Number of Teeth | 140 |
| Top Width | 2.0 in (50.8 mm) |
| Thickness | 0.234 in (5.9 mm) |
| Body Material | Neoprene |
| Tension Cord | Fiberglass |
| Construction | Synchronous (trapezoidal) |
| Brand | Bando |
Applications
- High-torque synchronous drives requiring zero slip and fixed timing
- Industrial pumps, blowers, and compressors
- Conveyor and material-handling drive systems
- Machine tools, packaging equipment, and process machinery
Frequently Asked Questions
What is the Bando 700DH200G used for?
It is a DH trapezoidal double-sided tb that delivers zero-slip, fixed-ratio synchronous power transmission. Typical uses include high-torque synchronous drives requiring zero slip and fixed timing and industrial pumps, blowers, and compressors.
What is the pitch and tooth count of 700DH200G?
The belt has a tooth pitch, a 1778.0 mm (70.0 in) pitch length, and 140 teeth.
How is the Bando 700DH200G constructed?
It uses neoprene construction with fiberglass tension cords in a synchronous (trapezoidal) design.
Does 700DH200G ship from Houston?
Yes. In-stock belts ship from our Houston, TX warehouse, typically same day on stock items.
Need a quote on 700DH200G?
Houston warehouse — same-day shipping on stock items.
Call (888) 203-2358Buying in bulk? Save on volume.
Multi-belt and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Call (888) 203-2358Email sales@texasbelting.comBrowse all Bando timing belts.
