Description

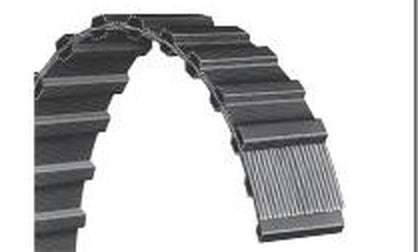

Bando 788DL075G DL Trapezoidal Double-Sided TB
The Bando 788DL075G is a DL trapezoidal double-sided tb with a 78.75 in (2000.2 mm) pitch length, 0.75 in (19.0 mm) width, and 210 teeth. Built on a neoprene body with fiberglass cords, it delivers zero-slip, fixed-ratio synchronous power transmission. Stocked for maintenance, reliability, and procurement teams.
| Specification | Value |
|---|---|
| Part Number | 788DL075G |
| Belt Type | Trapezoidal Double-Sided TB |
| Pitch (Section) | DL |
| Pitch Length | 78.75 in (2000.2 mm) |
| Number of Teeth | 210 |
| Top Width | 0.75 in (19.0 mm) |
| Thickness | 0.18 in (4.6 mm) |
| Body Material | Neoprene |
| Tension Cord | Fiberglass |
| Construction | Synchronous (trapezoidal) |
| Brand | Bando |
Applications
- High-torque synchronous drives requiring zero slip and fixed timing
- Industrial pumps, blowers, and compressors
- Conveyor and material-handling drive systems
- Machine tools, packaging equipment, and process machinery
Frequently Asked Questions
What is the Bando 788DL075G used for?
It is a DL trapezoidal double-sided tb that delivers zero-slip, fixed-ratio synchronous power transmission. Typical uses include high-torque synchronous drives requiring zero slip and fixed timing and industrial pumps, blowers, and compressors.
What is the pitch and tooth count of 788DL075G?
The belt has a tooth pitch, a 2000.2 mm (78.75 in) pitch length, and 210 teeth.
How is the Bando 788DL075G constructed?
It uses neoprene construction with fiberglass tension cords in a synchronous (trapezoidal) design.
Does 788DL075G ship from Houston?
Yes. In-stock belts ship from our Houston, TX warehouse, typically same day on stock items.
Need a quote on 788DL075G?
Houston warehouse — same-day shipping on stock items.
Call (888) 203-2358Buying in bulk? Save on volume.
Multi-belt and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Call (888) 203-2358Email sales@texasbelting.comBrowse all Bando timing belts.
