112-14MX90-4535 Powerhouse® MX Timing Pulley, 112 Teeth, 14MX Pitch


Price:
$ 1,352.19

Description

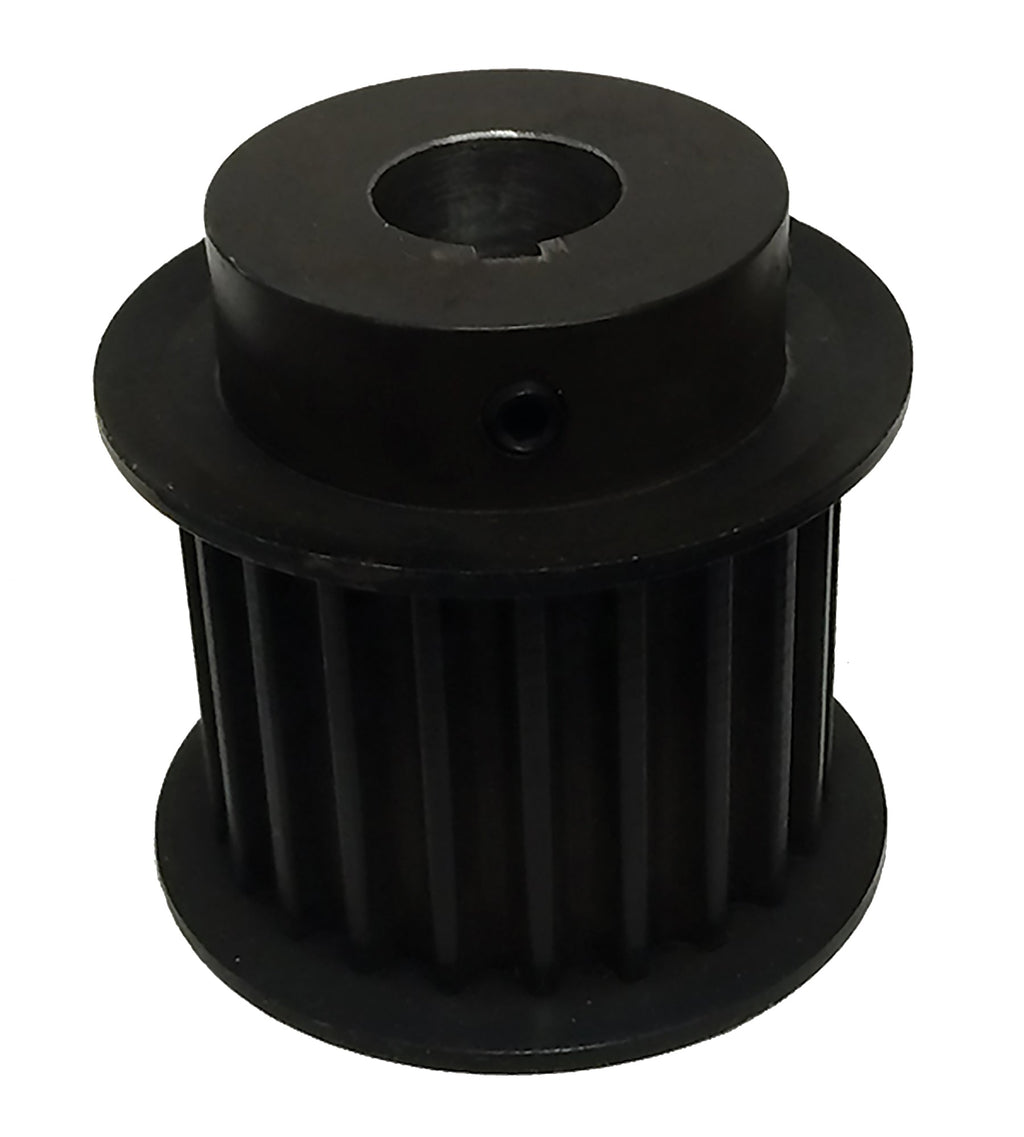

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

112-14MX90-4535 Powerhouse® MX Timing Pulley, 112 Teeth, 14MX Pitch

The 112-14MX90-4535 is a 112-tooth 14 mm MX high torque timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 9mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.

Specifications

Type D2 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 112-14MX90-4535
Teeth 112
Pitch 14 mm MX high torque
For Belt Width 9mm
Pitch Diameter 19.65 in
Outside Diameter 19.54 in
Bore Accepts 4535 bushing (not included)
Face Width 4.203 in
Overall Length 4.203 in
Construction Taper Lock Hub
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 173 lb
Country of Origin China

Applications

  • High torque, low speed drives replacing roller chain
  • Air cooled heat exchanger (ACHE) fan drives
  • Oil and gas pumping equipment
  • Material handling and conveyor drives
  • Weight-sensitive drives (webbed, lightened construction)

Belt Compatibility

The 112-14MX90-4535 runs 14 mm MX high torque belts in 9mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 112-14MX90-4535 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 14MX-112S-90-4535
Martin 14MX112S90-4535
Gates® 14MX-112S-90
TB Woods® 14MPC112S90
Regal Rexnord (Browning®) B14MCS-112-90
Mitsuboshi 112-14MX90-4535
Powerdrive 112-14MX90-4535
Continental (ContiTech) 112G-14M-90-4535

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 112-14MX90-4535 pulley?

14 mm MX high torque timing belts in 9mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 112-14MX90-4535 replace the Dodge 14MX-112S-90-4535?

Yes. Published interchange data crosses the 112-14MX90-4535 directly to the Dodge 14MX-112S-90-4535, as well as Martin 14MX112S90-4535, Gates 14MX-112S-90, TB Woods 14MPC112S90. Verify dimensions and bore before ordering.

Does the 112-14MX90-4535 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 112-14MX90-4535?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. Poly Chain®, GT®, and Carbon™ are trademarks of Gates Corporation. Synchrochain is a trademark of Continental. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
