112-14P115-4545 Powerhouse® Timing Pulley, 112 Teeth, 14P Pitch


Price:
$ 1,160.94

Description

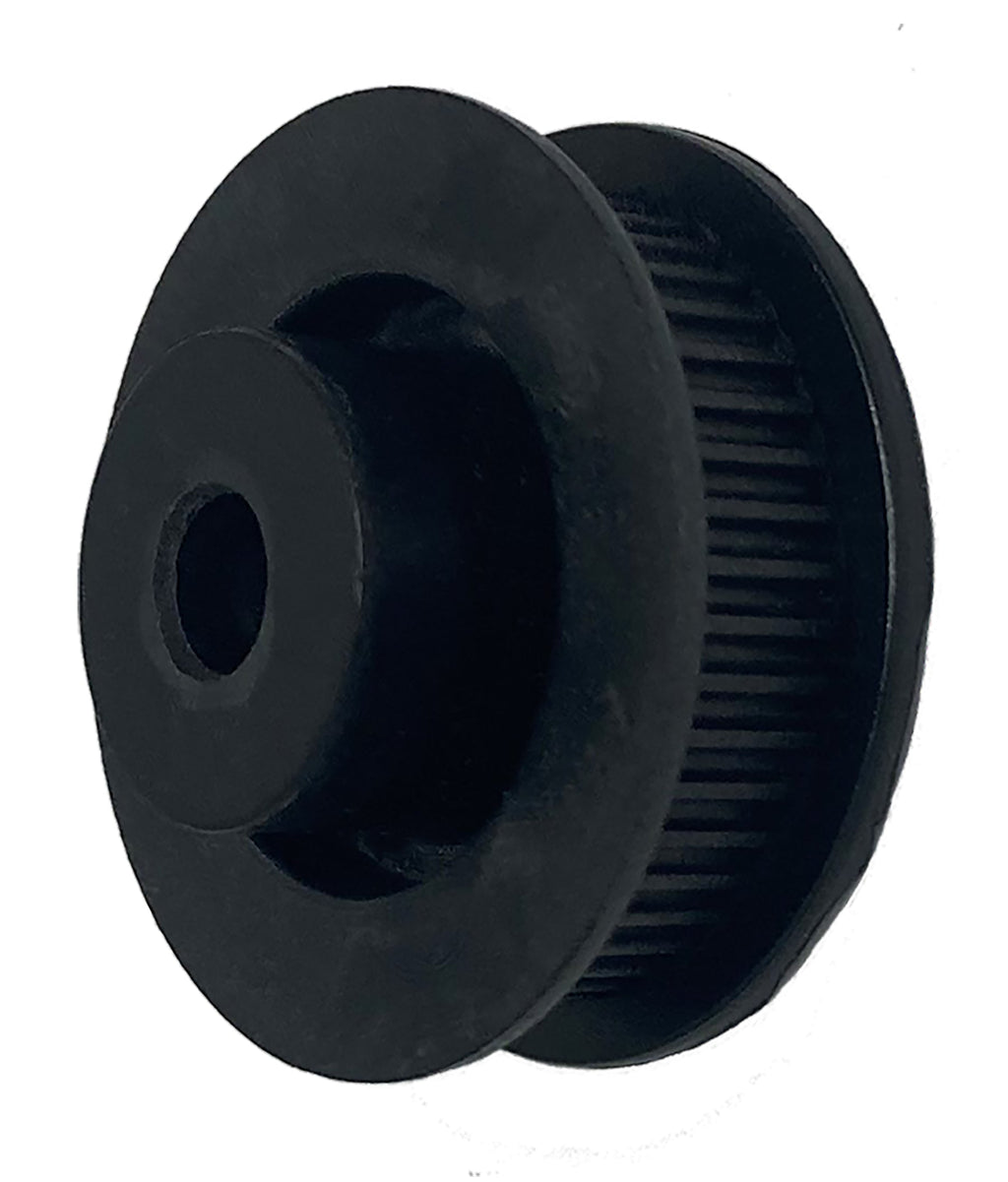

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

112-14P115-4545 Powerhouse® Timing Pulley, 112 Teeth, 14P Pitch

The 112-14P115-4545 is a 112-tooth 14 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 115mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

Specifications

Type D2 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 112-14P115-4545
Teeth 112
Pitch 14 mm Powerhouse® curvilinear
For Belt Width 115mm
Pitch Diameter 19.65 in
Outside Diameter 19.54 in
Bore Accepts 4545 bushing (not included)
Face Width 5.25 in
Overall Length 5.25 in
Construction Taper Lock Hub
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 19 lb
Country of Origin China

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment
  • Weight-sensitive drives (webbed, lightened construction)

Belt Compatibility

The 112-14P115-4545 runs 14 mm Powerhouse® curvilinear belts in 115mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 112-14P115-4545 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P112-14M-115-4545
Martin P11214M115-4545
Gates® P112-14MGT-115
TB Woods® P11214M115TL
Regal Rexnord (Browning®) B11214M115TL
Ametric 14M112TL115.4545
Powerdrive 112-14P115-4545
Continental (ContiTech) P112-14M-115-4545

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 112-14P115-4545 pulley?

14 mm Powerhouse® curvilinear timing belts in 115mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 112-14P115-4545 replace the Dodge P112-14M-115-4545?

Yes. Published interchange data crosses the 112-14P115-4545 directly to the Dodge P112-14M-115-4545, as well as Martin P11214M115-4545, Gates P112-14MGT-115, TB Woods P11214M115TL. Verify dimensions and bore before ordering.

Does the 112-14P115-4545 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 112-14P115-4545?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
