112-8P30-2517 Powerhouse® Timing Pulley, 112 Teeth, 8P Pitch


Price:
$ 337.95

Description

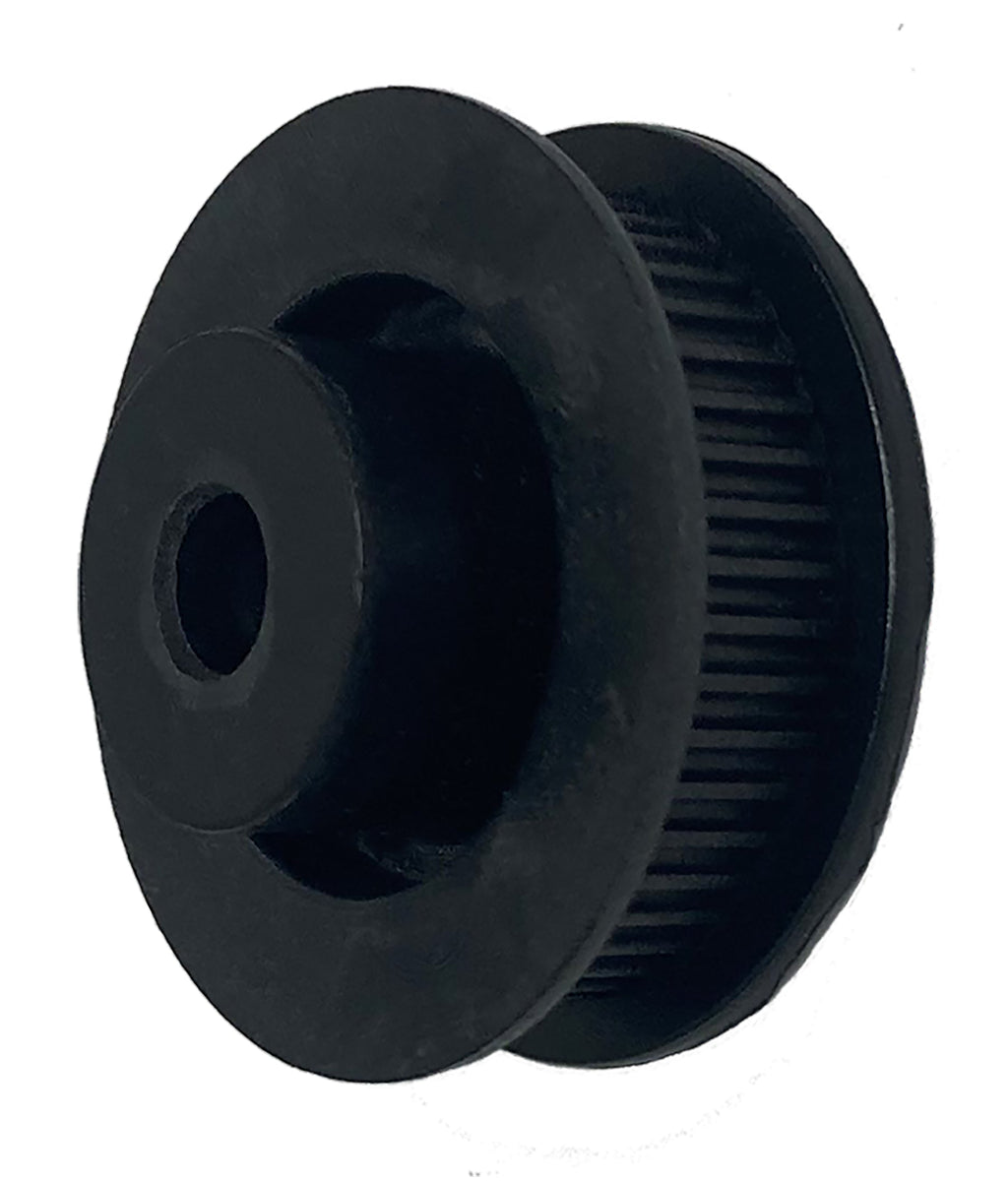

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

112-8P30-2517 Powerhouse® Timing Pulley, 112 Teeth, 8P Pitch

The 112-8P30-2517 is a 112-tooth 8 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 3mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

Specifications

Type C2 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 112-8P30-2517
Teeth 112
Pitch 8 mm Powerhouse® curvilinear
For Belt Width 3mm
Pitch Diameter 11.2286 in
Outside Diameter 11.1746 in
Bore Accepts 2517 bushing (not included)
Face Width 1.5 in
Overall Length 1.75 in
Construction Taper Lock Hub
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 15.864 lb
Country of Origin China

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment
  • Weight-sensitive drives (webbed, lightened construction)

Belt Compatibility

The 112-8P30-2517 runs 8 mm Powerhouse® curvilinear belts in 3mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 112-8P30-2517 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P112-8M-30-2517
Martin P1128M30-2517
Gates® P112-8MGT-30
TB Woods® P1128M30TL
Regal Rexnord (Browning®) B1128M30TL
Grainger 809T87
Powerdrive 112-8P30-2517
Continental (ContiTech) P112-8M-30-2517

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 112-8P30-2517 pulley?

8 mm Powerhouse® curvilinear timing belts in 3mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 112-8P30-2517 replace the Dodge P112-8M-30-2517?

Yes. Published interchange data crosses the 112-8P30-2517 directly to the Dodge P112-8M-30-2517, as well as Martin P1128M30-2517, Gates P112-8MGT-30, TB Woods P1128M30TL. Verify dimensions and bore before ordering.

Does the 112-8P30-2517 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 112-8P30-2517?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
