13-5M-PS6S Timing Pulley Bar Stock, 13 Teeth, 5M Pitch


Price:
$ 66.93

Description

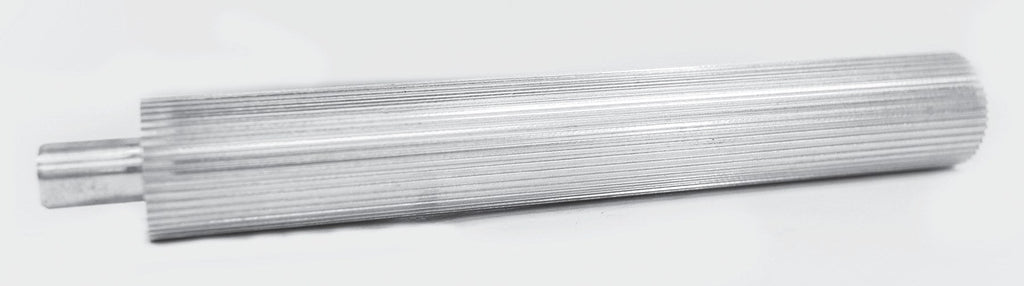

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

13-5M-PS6S Timing Pulley Bar Stock, 13 Teeth, 5M Pitch

The 13-5M-PS6S is machine-ready timing pulley bar stock with 13 teeth in 5 mm HTD® compatible pitch, steel. Pulley stock lets a machine shop turn finished custom pulleys without cutting teeth: part off a blank, bore, and finish.

Specifications

Specification Value
Part Number 13-5M-PS6S
Teeth 13
Pitch 5 mm HTD® compatible
Maximum Usable Length 6 in
Shank Length 0.875 in
Material Steel (no sintered or powdered metal)
Weight 0.655 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Machining custom-width timing pulleys to order
  • Prototype and short-run drive development
  • Special bores, hubs, and flange configurations not available as catalog parts

Cross Reference

The 13-5M-PS6S interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Stock Drive Products (SDP/SI) A 6C24M013TM15
Neuman 13-5M-PS-6S
York 13-5M-P-6S
On Drives 5HTD-6PS-013
Ametric 5M 13 ST
Powerdrive 13-5M-PS6S

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

How is pulley bar stock like the 13-5M-PS6S used?

Cut a blank to the face width you need, machine the bore, hub, and any flange seats, and you have a custom pulley with factory-quality teeth. It is the standard route for prototypes and non-catalog widths.

Does the 13-5M-PS6S replace the Stock Drive Products A 6C24M013TM15?

Yes. Published interchange data crosses the 13-5M-PS6S directly to the Stock Drive Products A 6C24M013TM15, as well as Neuman 13-5M-PS-6S, York 13-5M-P-6S, On Drives 5HTD-6PS-013. Verify dimensions and bore before ordering.

Does the 13-5M-PS6S ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 13-5M-PS6S?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
