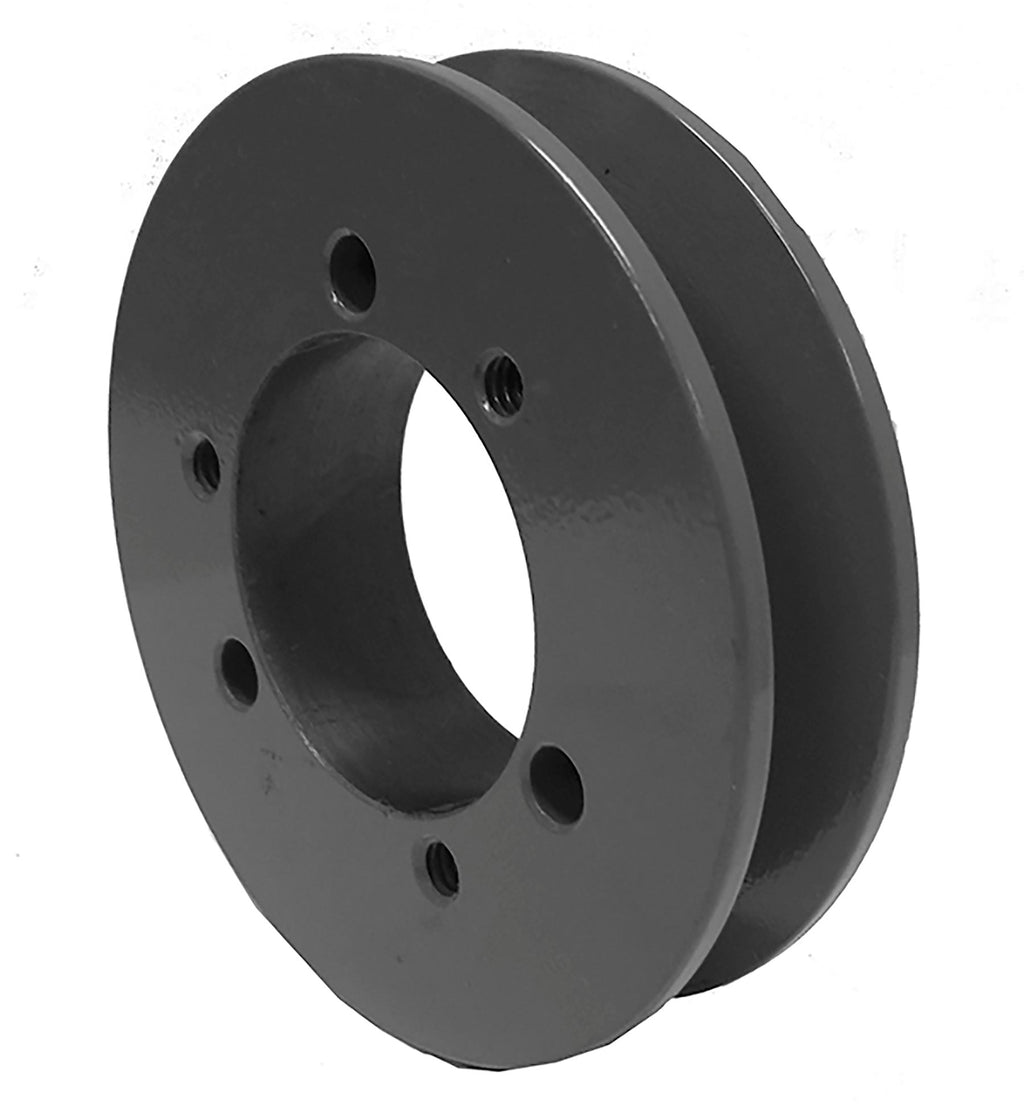

13V475SH V-Belt Sheave, 1 Groove, 3V Section, 4.75 in OD, SH Bushing
The 13V475SH is a 1-groove 3V section narrow wedge V-belt sheave with a 4.75 in outside diameter, fully machined from cast iron and statically balanced. It mounts with an industry-standard SH QD® style bushing, sold separately, sized to your shaft. It runs 3V and 3VX narrow wedge V-belts.
$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.
Specifications
| Specification | Value |
|---|---|
| Part Number | 13V475SH |
| Belt Section | 3V |
| Grooves | 1 |
| Outside Diameter | 4.75 in |
| Pitch Diameter | 4.7 in |
| Face Width | 0.688 in |
| Bushing | SH series, QD® style (not included) |
| Material | Cast Iron, fully machined, statically balanced |
| Weight | 2.4 lb |
| Country of Origin | China |
Applications
- Multi-belt narrow wedge drives on fans, blowers, and pumps
- HVAC air handlers and cooling tower drives
- Compressors and industrial process equipment
- Replacing worn sheaves on existing drives without changing belts or bushings
Cross Reference
The 13V475SH interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | D1-3V475 |
| Martin | 1 3V 475 SH |
| Gates® | QD1/3V4.75 |
| TB Woods® | 3V4751 |
| Regal Rexnord (Browning®) | 13V475SH |
| Carlisle | 1-3V-475-SH |
| Masterdrive | 1/3V475SH |
| Maurey | 13V4.75-SH |
| Jason Industrial | 1/3V475SH |
| Optibelt | QD 3V475/1 SH |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts run on the 13V475SH?
3V and 3VX narrow wedge V-belts. These sections are standardized, so any manufacturer's belts of the correct section and length will run in the grooves.
Does the 13V475SH replace the Dodge D1-3V475 sheave?
Yes. Published interchange data crosses the 13V475SH directly to the Dodge D1-3V475, as well as Martin 1 3V 475 SH, Gates QD1/3V4.75, TB Woods 3V4751. Verify groove count, diameter, and bore or bushing before ordering.
What bushing does the 13V475SH use?
A SH series QD style bushing, sold separately. SH is an industry-standard bushing size, so any manufacturer's standard SH bushing fits. Order the bushing bore that matches your shaft diameter.
Does the 13V475SH ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
