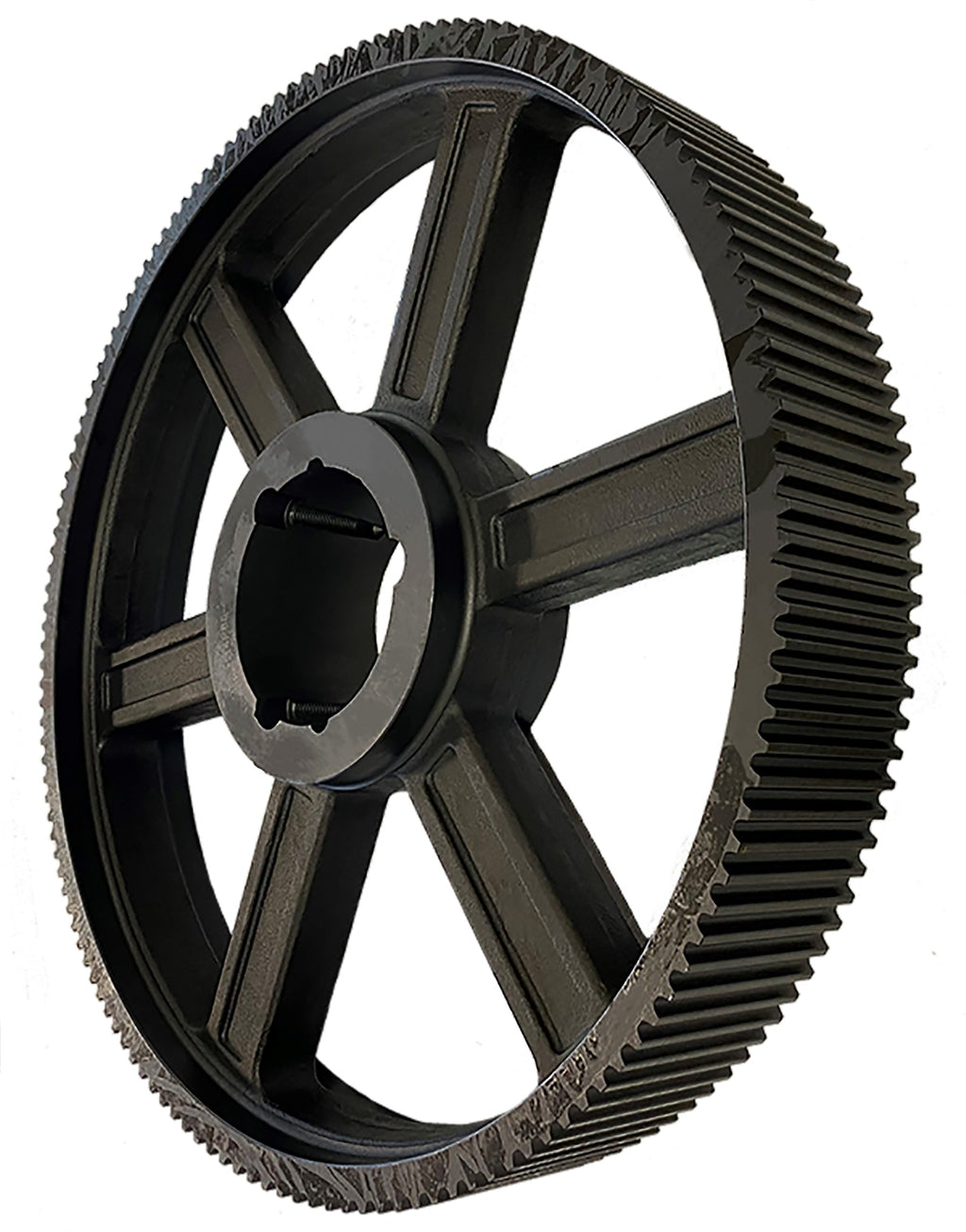

144-14P85-4040 Powerhouse® Timing Pulley, 144 Teeth, 14P Pitch


Price:
$ 1,068.17

Description

144-14P85-4040 Powerhouse® Timing Pulley, 144 Teeth, 14P Pitch

The 144-14P85-4040 is a 144-tooth 14 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 85mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

Specifications

Type D3 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 144-14P85-4040
Teeth 144
Pitch 14 mm Powerhouse® curvilinear
For Belt Width 85mm
Pitch Diameter 25.2643 in
Outside Diameter 25.1543 in
Bore Accepts 4040 bushing (not included)
Face Width 4 in
Overall Length 4 in
Construction Taper Lock Hub
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 127 lb
Country of Origin China

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment
  • Weight-sensitive drives (webbed, lightened construction)

Belt Compatibility

The 144-14P85-4040 runs 14 mm Powerhouse® curvilinear belts in 85mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 144-14P85-4040 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P144-14M-85-4040
Martin P14414M85-4040
Gates® P144-14MGT-85
Regal Rexnord (Browning®) B14414M85TL
Ametric 14M144TL85.4040
Grainger 809T92
Powerdrive 144-14P85-4040
Continental (ContiTech) P144-14M-85-4040

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 144-14P85-4040 pulley?

14 mm Powerhouse® curvilinear timing belts in 85mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 144-14P85-4040 replace the Dodge P144-14M-85-4040?

Yes. Published interchange data crosses the 144-14P85-4040 directly to the Dodge P144-14M-85-4040, as well as Martin P14414M85-4040, Gates P144-14MGT-85, Regal Rexnord B14414M85TL. Verify dimensions and bore before ordering.

Does the 144-14P85-4040 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 144-14P85-4040?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
