Description

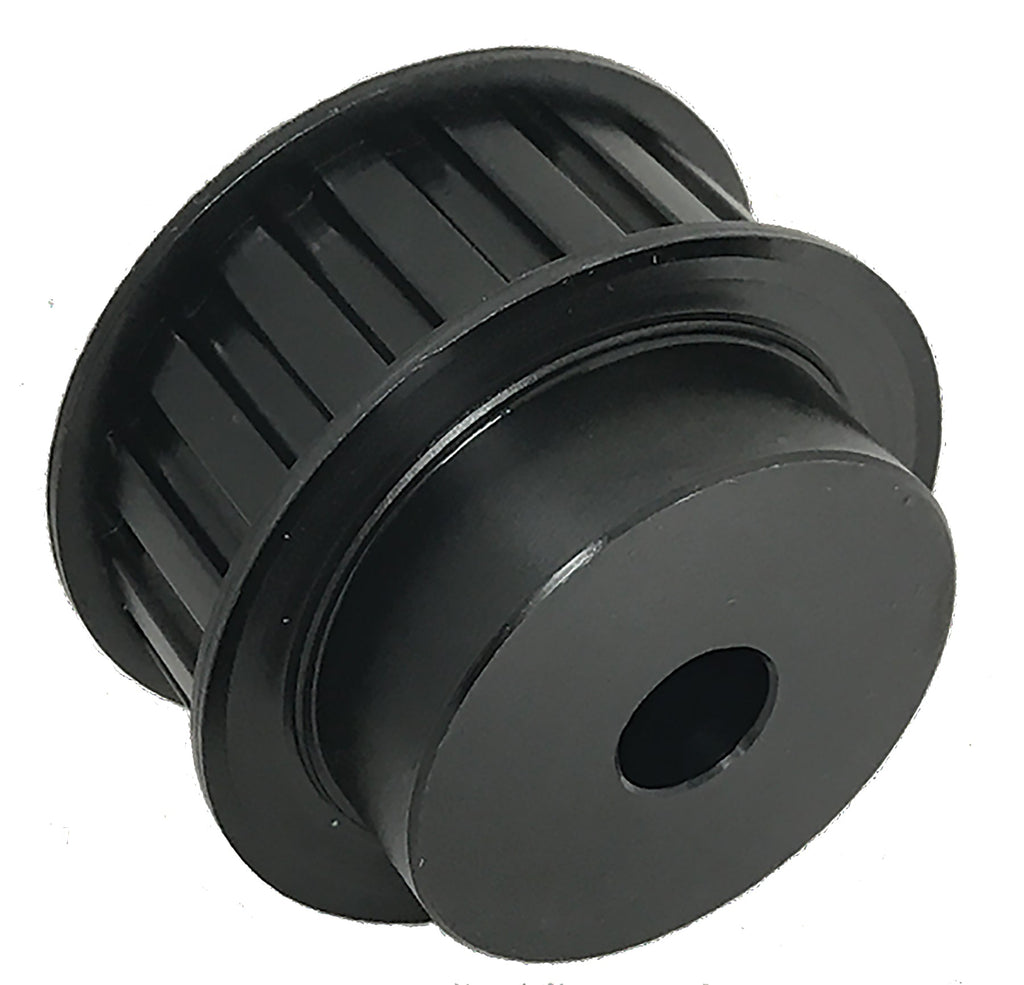

14H100-6FS7 Timing Pulley, 14 Teeth, H Pitch
The 14H100-6FS7 is a 14-tooth H (0.500 in trapezoidal) timing pulley with a 5/8 in minimum plain bore, machined from steel with a black oxide finish, built for 1 in wide belts. Machined from solid stock, never sintered or powdered metal.
$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 14H100-6FS7 |
| Teeth | 14 |
| Pitch | H (0.500 in trapezoidal) |
| For Belt Width | 1 in |
| Pitch Diameter | 2.2282 in |
| Outside Diameter | 2.1742 in |
| Flange Diameter | 2.461 in |
| Bore | 5/8 in minimum plain bore |
| Face Width | 1.312 in |
| Overall Length | 1.875 in |
| Hub Diameter | 1.625 in |
| Construction | Standard Hub |
| Flange Material | Steel |
| Material | Steel (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 1.543 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- Instrumentation, office equipment, and precision positioning drives
- 3D printers and desktop CNC equipment
- Robotics, medical devices, and packaging machinery
Belt Compatibility
The 14H100-6FS7 runs H (0.500 in trapezoidal) belts in 1 in width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 14H100-6FS7 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | 14H100-MPB |
| Martin | 14H100 |
| TB Woods® | 14H100MPB |
| Regal Rexnord (Browning®) | 14HB100 |
| Mitsuboshi | 14H100-6FS7 |
| McMaster-Carr | 6495K43 |
| Grainger | 809UZ6 |
| Powerdrive | 14H100-6FS7 |
| Continental (ContiTech) | 14H100-5/8 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 14H100-6FS7 pulley?
H (0.500 in trapezoidal) timing belts in 1 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 14H100-6FS7 replace the Dodge 14H100-MPB?
Yes. Published interchange data crosses the 14H100-6FS7 directly to the Dodge 14H100-MPB, as well as Martin 14H100, TB Woods 14H100MPB, Regal Rexnord 14HB100. Verify dimensions and bore before ordering.
Does the 14H100-6FS7 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
Need a quote on 14H100-6FS7?
Houston warehouse, same-day shipping on stock items.
Call (888) 203-2358All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
