Description

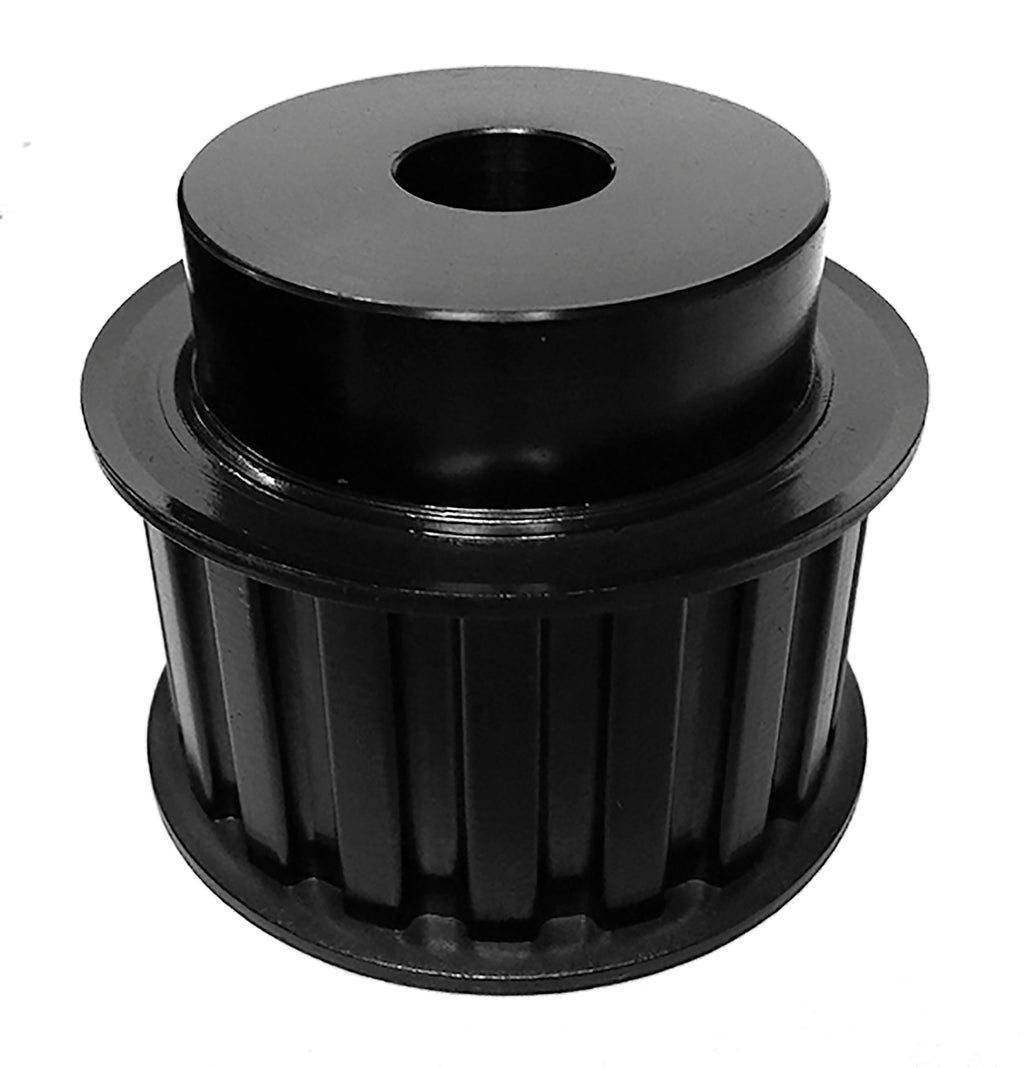

14H150-6FS8 Timing Pulley, 14 Teeth, H Pitch
The 14H150-6FS8 is a 14-tooth H (0.500 in trapezoidal) timing pulley with a 3/4 in minimum plain bore, machined from steel with a black oxide finish, built for 1.5 in wide belts. Machined from solid stock, never sintered or powdered metal.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 14H150-6FS8 |
| Teeth | 14 |
| Pitch | H (0.500 in trapezoidal) |
| For Belt Width | 1.5 in |
| Pitch Diameter | 2.2282 in |
| Outside Diameter | 2.1742 in |
| Flange Diameter | 2.461 in |
| Bore | 3/4 in minimum plain bore |
| Face Width | 1.812 in |
| Overall Length | 2.375 in |
| Hub Diameter | 1.625 in |
| Construction | Standard Hub |
| Flange Material | Steel |
| Material | Steel (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 1.909 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- Instrumentation, office equipment, and precision positioning drives
- 3D printers and desktop CNC equipment
- Robotics, medical devices, and packaging machinery
Belt Compatibility
The 14H150-6FS8 runs H (0.500 in trapezoidal) belts in 1.5 in width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 14H150-6FS8 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | 14H150-MPB |
| Martin | 14H150 |
| Regal Rexnord (Browning®) | 14HB150 |
| Mitsuboshi | 14H150-6FS8 |
| McMaster-Carr | 6495K94 |
| Grainger | 809UZ7 |
| Powerdrive | 14H150-6FS8 |
| Continental (ContiTech) | 14H150-3/4 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 14H150-6FS8 pulley?
H (0.500 in trapezoidal) timing belts in 1.5 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 14H150-6FS8 replace the Dodge 14H150-MPB?
Yes. Published interchange data crosses the 14H150-6FS8 directly to the Dodge 14H150-MPB, as well as Martin 14H150, Regal Rexnord 14HB150, Mitsuboshi 14H150-6FS8. Verify dimensions and bore before ordering.
Does the 14H150-6FS8 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
Need a quote on 14H150-6FS8?
Houston warehouse, same-day shipping on stock items.
Call (888) 203-2358All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
