156HR200 Timing Pulley, 156 Teeth, H Pitch


Price:
$ 650.90

Description

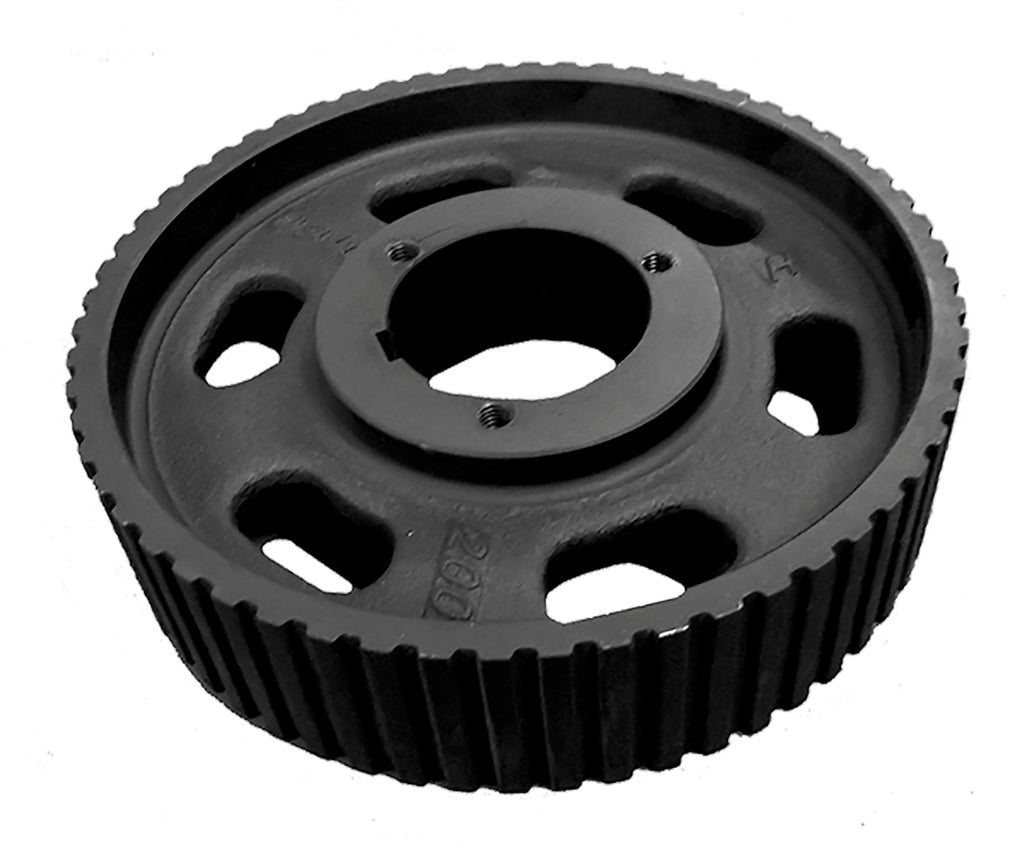

156HR200 Timing Pulley, 156 Teeth, H Pitch

The 156HR200 is a 156-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron, built for 2 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type A3 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 156HR200
Teeth 156
Pitch H (0.500 in trapezoidal)
For Belt Width 2 in
Pitch Diameter 24.8282 in
Outside Diameter 24.7742 in
Bore Accepts R1 bushing (not included)
Face Width 2.875 in
Overall Length 3.406 in
Construction Split Taper Hub
Material Cast Iron (no sintered or powdered metal)
Weight 51 lb
Country of Origin China

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 156HR200 runs H (0.500 in trapezoidal) belts in 2 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 156HR200 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Regal Rexnord (Browning®) 156HR200
Powerdrive 156HR200

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 156HR200 pulley?

H (0.500 in trapezoidal) timing belts in 2 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 156HR200 replace the Regal Rexnord 156HR200?

Yes. Published interchange data crosses the 156HR200 directly to the Regal Rexnord 156HR200, as well as Powerdrive 156HR200. Verify dimensions and bore before ordering.

Does the 156HR200 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 156HR200?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358
