15XL-FA Timing Pulley Flange, 1.188 in OD


Price:
$ 2.05

Description

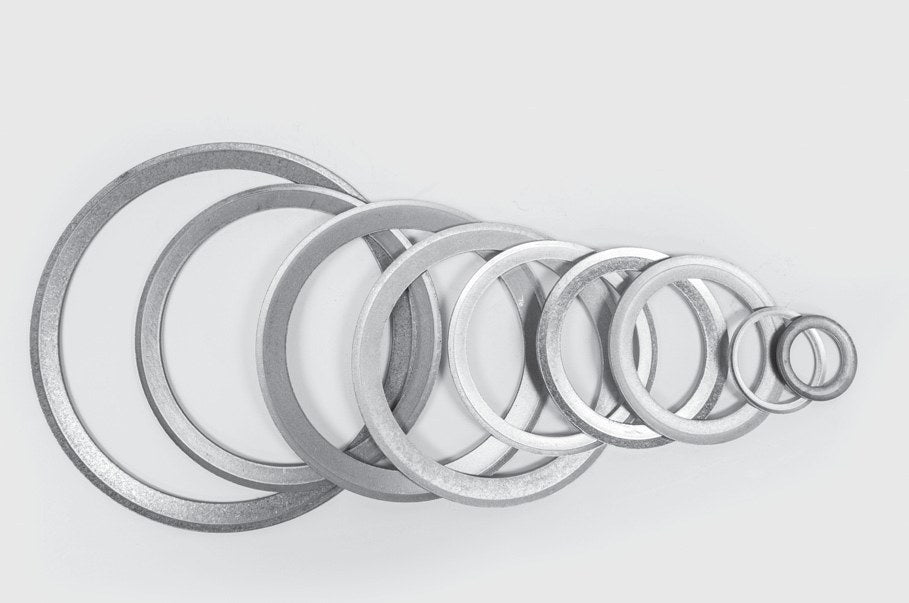

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

15XL-FA Timing Pulley Flange, 1.188 in OD

The 15XL-FA is a timing pulley flange with a 1.188 in outside diameter and 0.748 in inside diameter, aluminum. Flanges press onto unflanged pulleys to keep the belt tracking on the teeth, which is required when shaft alignment cannot be held exactly parallel.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Specification Value
Part Number 15XL-FA
Outside Diameter 1.188 in
Inside Diameter 0.748 in
Stock Thickness 0.04 in
Overall Form Thickness 0.065 in
Material Aluminum (no sintered or powdered metal)
Weight 0.02 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Flanging custom pulleys machined from bar stock
  • Replacing damaged flanges on existing pulleys
  • Belt retention on drives with axial belt drift

Cross Reference

The 15XL-FA interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Stock Drive Products (SDP/SI) A 6A 2-15FA
Neuman 15XL-FA
York 15XL-F2A
On Drives XL-FA-015
Grainger 816U57
Powerdrive 15XL-FA

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

When does a timing pulley need flanges like the 15XL-FA?

When the belt can walk axially: long center distances, vertical shafts, or any drive where the shafts are not held perfectly parallel. Standard practice is to flange at least one pulley in the drive, typically the smaller one.

Does the 15XL-FA replace the Stock Drive Products A 6A 2-15FA?

Yes. Published interchange data crosses the 15XL-FA directly to the Stock Drive Products A 6A 2-15FA, as well as Neuman 15XL-FA, York 15XL-F2A, On Drives XL-FA-015. Verify dimensions and bore before ordering.

Does the 15XL-FA ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 15XL-FA?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
