16-3P09MSFA4 Powerhouse® Timing Pulley, 16 Teeth, 3P Pitch


Price:
$ 8.99

Description

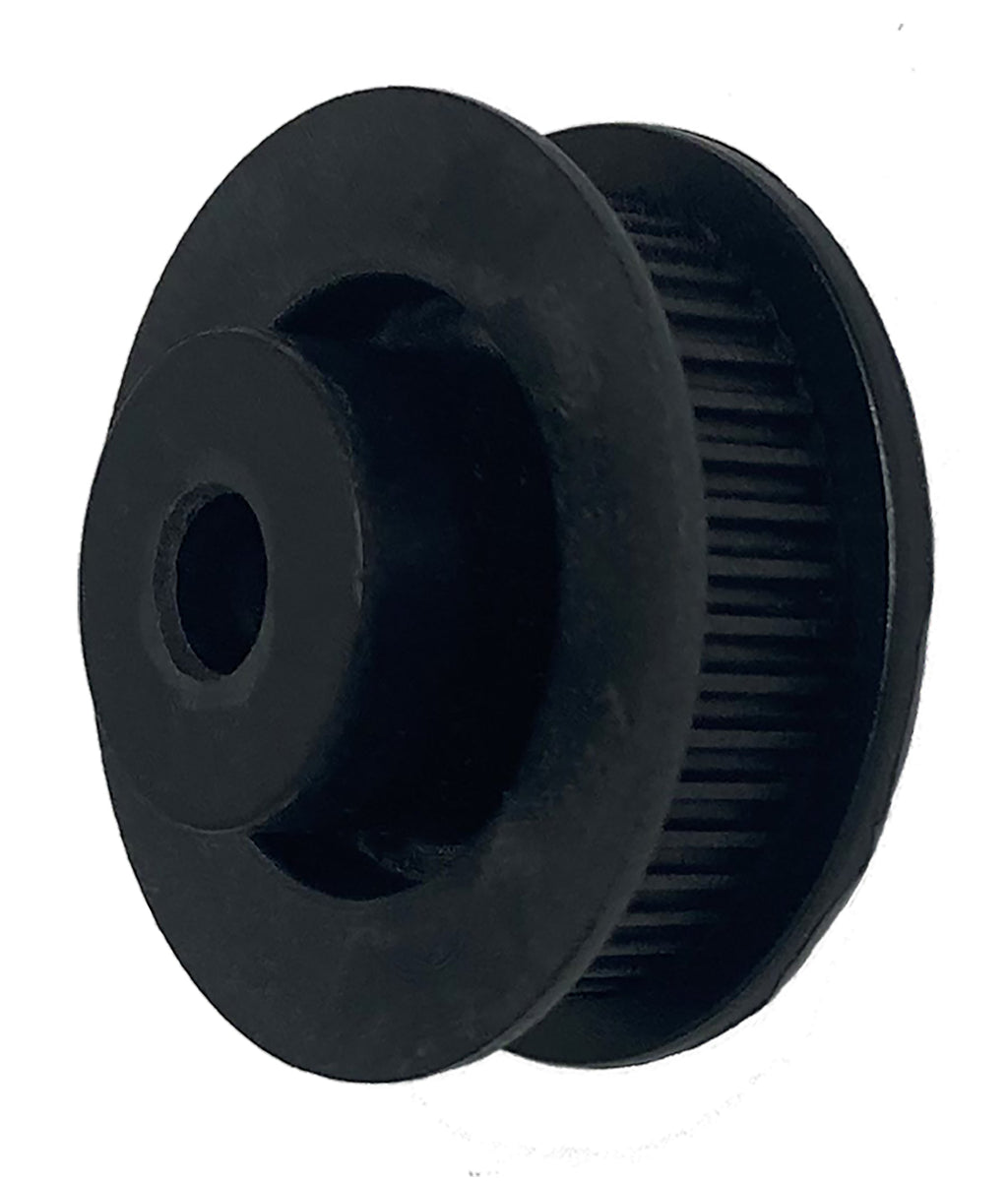

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

16-3P09MSFA4 Powerhouse® Timing Pulley, 16 Teeth, 3P Pitch

The 16-3P09MSFA4 is a 16-tooth 3 mm Powerhouse® curvilinear timing pulley with a 4 mm Bore, machined from polycarbonate, built for 9mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Specification Value
Part Number 16-3P09MSFA4
Teeth 16
Pitch 3 mm Powerhouse® curvilinear
For Belt Width 9mm
Pitch Diameter 0.6015 in
Outside Diameter 0.5715 in
Flange Diameter 0.82 in
Bore 4 mm Bore
Face Width 0.5625 in
Overall Length 0.8125 in
Hub Diameter 0.6875 in
Set Screws 1 x M2.5
Material Polycarbonate (no sintered or powdered metal)
Weight 0.02 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment

Belt Compatibility

The 16-3P09MSFA4 runs 3 mm Powerhouse® curvilinear belts in 9mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 16-3P09MSFA4 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Stock Drive Products (SDP/SI) A 6Z53M016SF0904
Powerdrive 16-3P09MSFA4

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 16-3P09MSFA4 pulley?

3 mm Powerhouse® curvilinear timing belts in 9mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 16-3P09MSFA4 replace the Stock Drive Products A 6Z53M016SF0904?

Yes. Published interchange data crosses the 16-3P09MSFA4 directly to the Stock Drive Products A 6Z53M016SF0904, as well as Powerdrive 16-3P09MSFA4. Verify dimensions and bore before ordering.

Does the 16-3P09MSFA4 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 16-3P09MSFA4?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
