Description

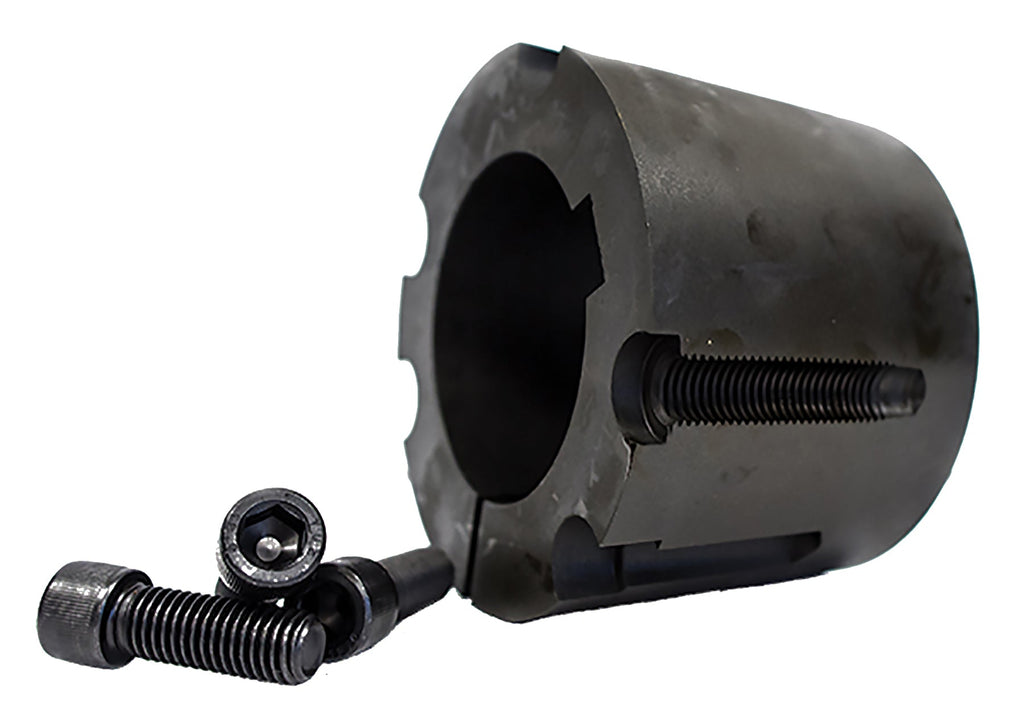

1615x1 Taper-Lock® Style Bushing, 1 in Bore, Steel
The 1615x1 is a 1615 series Taper-Lock style bushing with a 1 in bore, machined from solid steel with a black oxide finish. It mounts any 1615-bushed component, including sheaves, sprockets, and timing pulleys, to a 1 in shaft. Every bushing is machined from solid stock, never sintered or powdered metal, which matters in a part that transmits its load through a friction fit.
$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.
Specifications
| Specification | Value |
|---|---|
| Part Number | 1615x1 |
| Bushing System | Taper-Lock® style |
| Series | 1615 |
| Bore | 1 in |
| Torque Capacity | 4300 in-lb |
| Material | Steel (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 1.093 lb |
| Country of Origin | China |
| Bolt Circle | 2.125 |
Applications
- Mounting 1615-bushed V-belt sheaves, sprockets, and timing pulleys to 1 in shafts
- Drive component replacement where the bushing wears or the shaft size changes
- Conveyor, fan, pump, and general industrial drive assemblies
- Stocking standard bushing sizes for plant maintenance inventories
Cross Reference
The 1615x1 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | 1615 X 1 |
| Martin | 1615 1 |
| Gates® | 1615 1. |
| TB Woods® | TL16151 |
| US Tsubaki | 1615-1 |
| Regal Rexnord (Browning®) | 1615X1 |
| Masterdrive | 1615-1 |
| Optibelt | 1615-1 |
| Jason Industrial | 1615-1 |
| McMaster-Carr | 57095K175 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What does the 1615x1 bushing fit?
It fits any sheave, sprocket, pulley, or coupling machined for a 1615 series Taper-Lock style bushing, and mounts that component to a 1 in shaft. The 1615 size is standardized across manufacturers, so the component brand does not matter.
Does the 1615x1 replace the Dodge 1615 X 1 bushing?
Yes. The 1615 series dimensions are an industry standard, and published interchange data crosses the 1615x1 directly to the Dodge 1615 X 1, as well as Martin 1615 1, Gates 1615 1., TB Woods TL16151. Verify bore size before ordering.
How does a Taper-Lock style bushing install?
The bushing is split and tapered. Slide it onto the shaft, seat the component over it, and tighten the pull-up screws in the threaded holes. The screws draw the taper into the component, clamping the bushing onto the shaft. To remove, back the screws out and use them in the jacking holes to break the taper free.
Does the 1615x1 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
