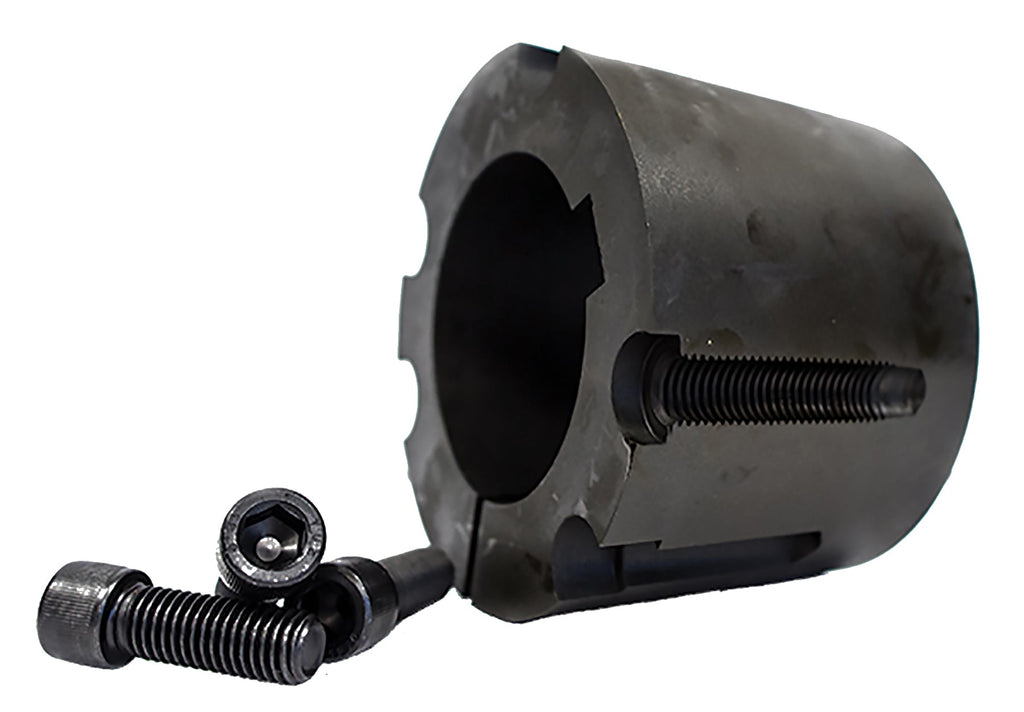

1615x24mm Taper-Lock® Style Bushing, 24mm Bore, Steel


Price:
$ 18.63

Description

1615x24mm Taper-Lock® Style Bushing, 24mm Bore, Steel

The 1615x24mm is a 1615 series Taper-Lock style bushing with a 24mm bore, machined from solid steel with a black oxide finish. It mounts any 1615-bushed component, including sheaves, sprockets, and timing pulleys, to a 24mm shaft. Every bushing is machined from solid stock, never sintered or powdered metal, which matters in a part that transmits its load through a friction fit.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Specification Value
Part Number 1615x24mm
Bushing System Taper-Lock® style
Series 1615
Bore 24mm
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 1.093 lb
Country of Origin China

Applications

  • Mounting 1615-bushed V-belt sheaves, sprockets, and timing pulleys to 24mm shafts
  • Drive component replacement where the bushing wears or the shaft size changes
  • Conveyor, fan, pump, and general industrial drive assemblies
  • Stocking standard bushing sizes for plant maintenance inventories

Cross Reference

The 1615x24mm interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 1615 X 24MM
Martin 1615 24MM
Gates® 1615 24MM
Masterdrive 1615-24MM
Optibelt 1615-24
McMaster-Carr 57095K528

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What does the 1615x24mm bushing fit?

It fits any sheave, sprocket, pulley, or coupling machined for a 1615 series Taper-Lock style bushing, and mounts that component to a 24mm shaft. The 1615 size is standardized across manufacturers, so the component brand does not matter.

Does the 1615x24mm replace the Dodge 1615 X 24MM bushing?

Yes. The 1615 series dimensions are an industry standard, and published interchange data crosses the 1615x24mm directly to the Dodge 1615 X 24MM, as well as Martin 1615 24MM, Gates 1615 24MM, Masterdrive 1615-24MM. Verify bore size before ordering.

How does a Taper-Lock style bushing install?

The bushing is split and tapered. Slide it onto the shaft, seat the component over it, and tighten the pull-up screws in the threaded holes. The screws draw the taper into the component, clamping the bushing onto the shaft. To remove, back the screws out and use them in the jacking holes to break the taper free.

Does the 1615x24mm ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 1615x24mm?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Taper-Lock® is a registered trademark of its respective owner. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
