16H100-6FS7 Timing Pulley, 16 Teeth, H Pitch


Price:
$ 48.36

Description

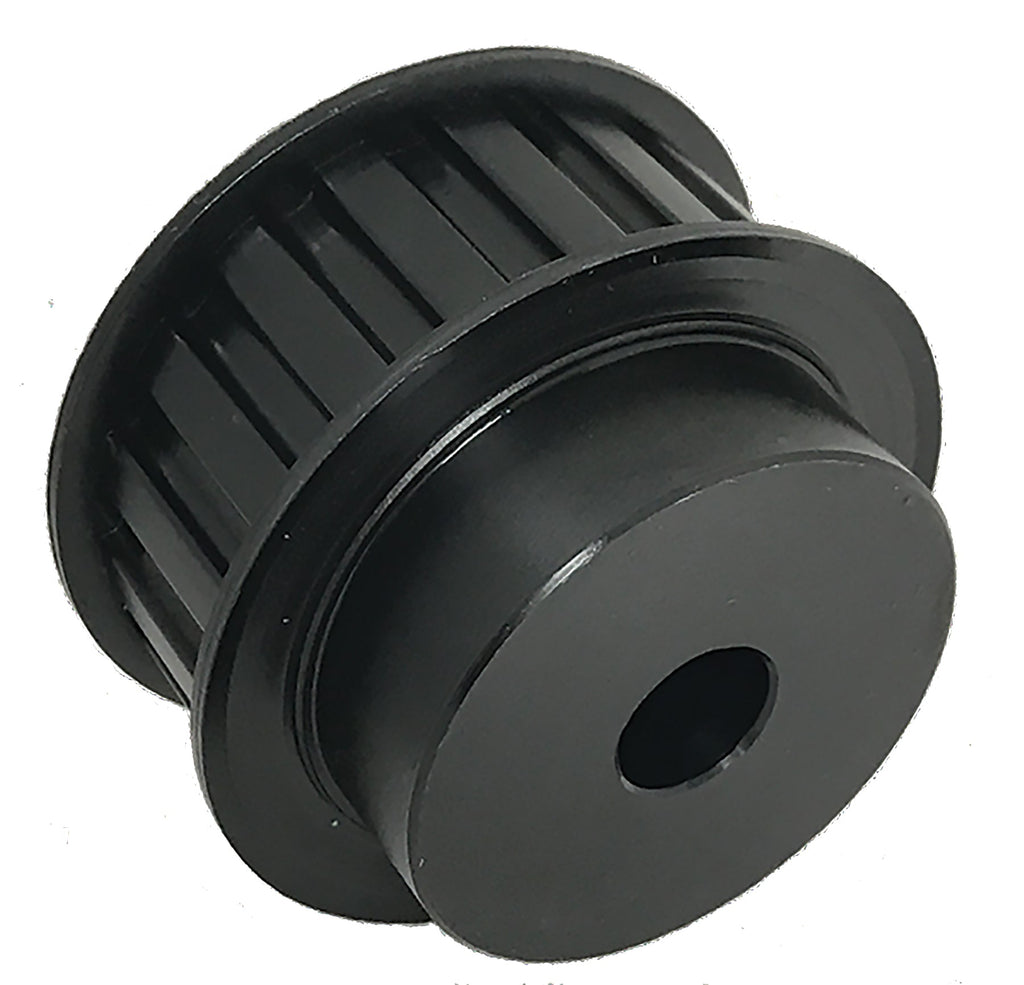

16H100-6FS7 Timing Pulley, 16 Teeth, H Pitch

The 16H100-6FS7 is a 16-tooth H (0.500 in trapezoidal) timing pulley with a 5/8 in minimum plain bore, machined from steel with a black oxide finish, built for 1 in wide belts. Machined from solid stock, never sintered or powdered metal.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 6FNOKEY pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 16H100-6FS7
Teeth 16
Pitch H (0.500 in trapezoidal)
For Belt Width 1 in
Pitch Diameter 2.5465 in
Outside Diameter 2.4925 in
Flange Diameter 2.78 in
Bore 5/8 in minimum plain bore
Face Width 1.312 in
Overall Length 2 in
Hub Diameter 1.875 in
Construction Standard Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 2.154 lb
Country of Origin India

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 16H100-6FS7 runs H (0.500 in trapezoidal) belts in 1 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 16H100-6FS7 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 16H100-MPB
Martin 16H100
TB Woods® 16H100MPB
Regal Rexnord (Browning®) 16HB100
Mitsuboshi 16H100-6FS7
McMaster-Carr 6495K44
Grainger 809V19
Powerdrive 16H100-6FS7
Continental (ContiTech) 16H100-5/8

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 16H100-6FS7 pulley?

H (0.500 in trapezoidal) timing belts in 1 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 16H100-6FS7 replace the Dodge 16H100-MPB?

Yes. Published interchange data crosses the 16H100-6FS7 directly to the Dodge 16H100-MPB, as well as Martin 16H100, TB Woods 16H100MPB, Regal Rexnord 16HB100. Verify dimensions and bore before ordering.

Does the 16H100-6FS7 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 16H100-6FS7?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
