16HG150 Timing Pulley, 16 Teeth, H Pitch


Price:
$ 82.48

Description

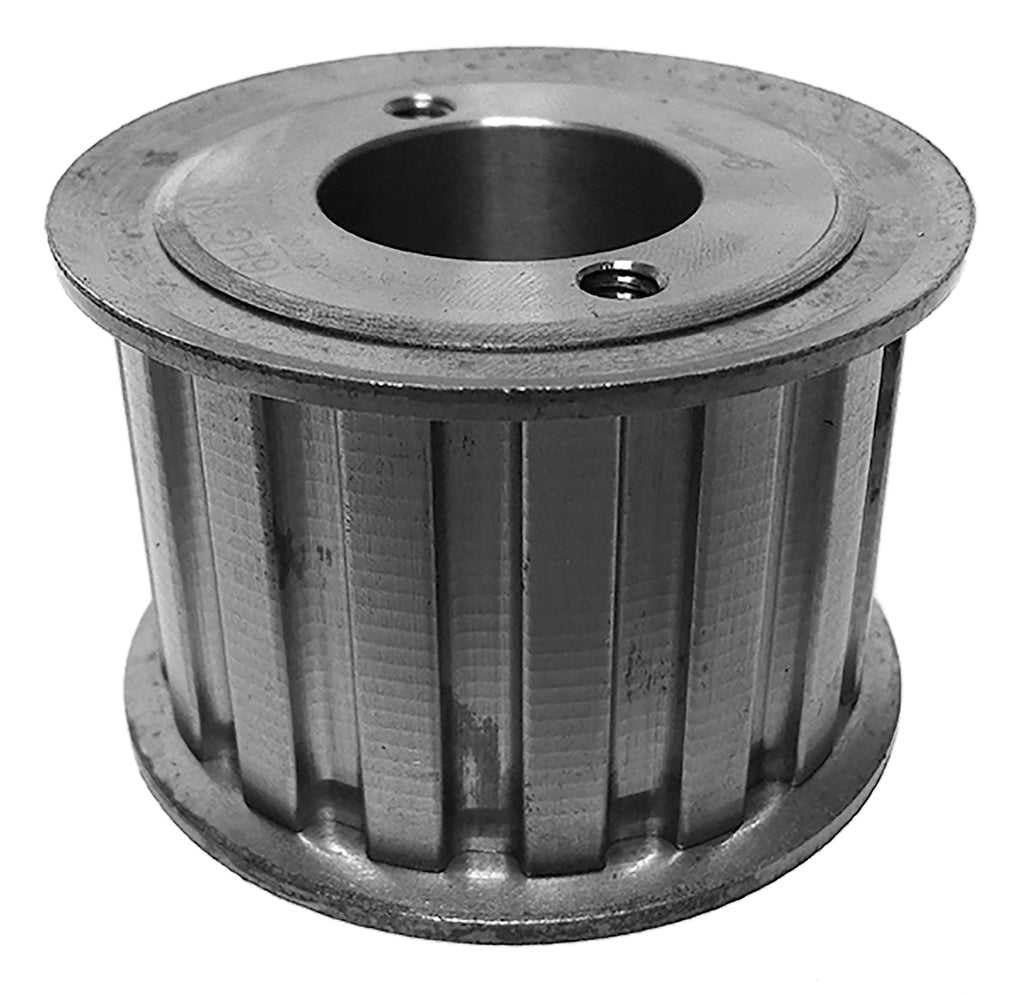

16HG150 Timing Pulley, 16 Teeth, H Pitch

The 16HG150 is a 16-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel, built for 1.5 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 4 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 16HG150
Teeth 16
Pitch H (0.500 in trapezoidal)
For Belt Width 1.5 in
Pitch Diameter 2.5465 in
Outside Diameter 2.4925 in
Flange Diameter 2.875 in
Bore Accepts G bushing (not included)
Face Width 1.75 in
Overall Length 2.375 in
Construction Split Taper Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Weight 1.907 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 16HG150 runs H (0.500 in trapezoidal) belts in 1.5 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 16HG150 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Regal Rexnord (Browning®) 16HG150
Powerdrive 16HG150

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 16HG150 pulley?

H (0.500 in trapezoidal) timing belts in 1.5 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 16HG150 replace the Regal Rexnord 16HG150?

Yes. Published interchange data crosses the 16HG150 directly to the Regal Rexnord 16HG150, as well as Powerdrive 16HG150. Verify dimensions and bore before ordering.

Does the 16HG150 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 16HG150?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
