17-3M09-6CA2 Powerhouse® HTD Timing Pulley, 17 Teeth, 3M Pitch, 3/16 in Bore

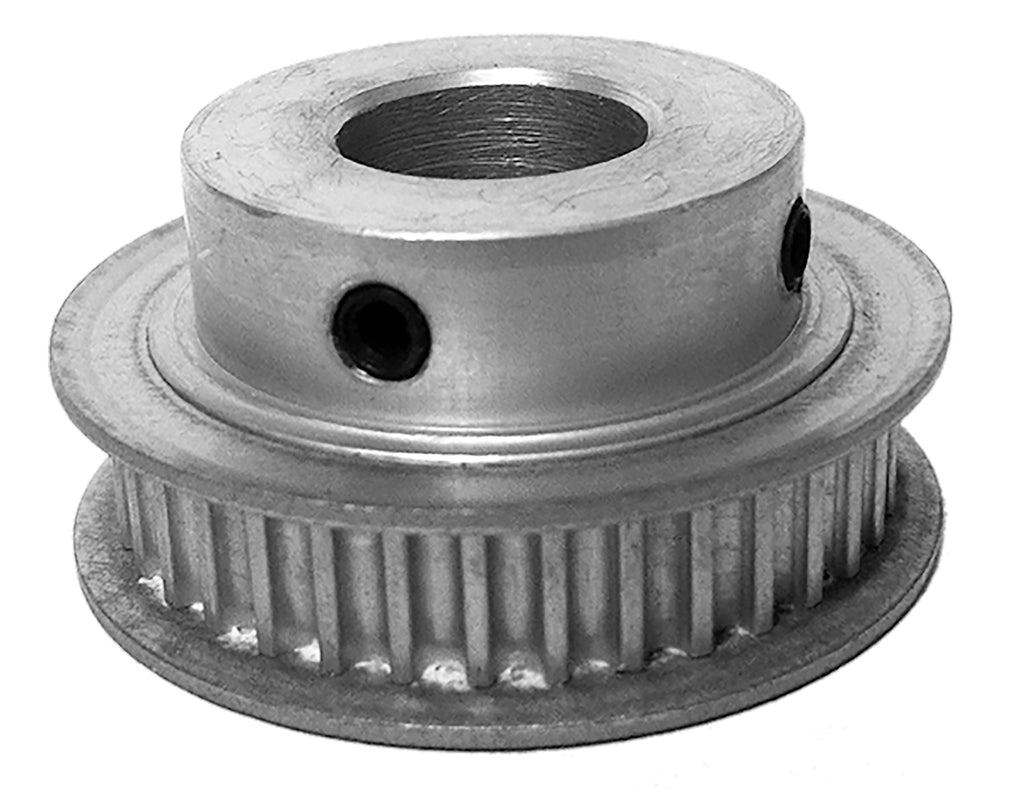

The 17-3M09-6CA2 is a 17-tooth 3 mm HTD® compatible timing pulley with a 3/16 in finished bore, machined from aluminum with a clear anodized finish, built for 9mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.
$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 17-3M09-6CA2 |
| Teeth | 17 |
| Pitch | 3 mm HTD® compatible |
| For Belt Width | 9mm |
| Pitch Diameter | 0.6391 in |
| Outside Diameter | 0.6091 in |
| Flange Diameter | 0.74 in |
| Bore | 3/16 in finished bore |
| Face Width | 0.453 in |
| Overall Length | 0.691 in |
| Hub Diameter | 0.74 in |
| Construction | Standard Hub Serves as 2nd Flange |
| Set Screws | 2 x 6-40 |
| Flange Material | Aluminum |
| Material | Aluminum (no sintered or powdered metal) |
| Finish | Clear Anodized |
| Weight | 0.0218 lb |
| Country of Origin | India |
Applications
- HTD curvilinear belt drives on industrial equipment
- Conveyors, packaging, and warehouse automation
- Replacing worn pulleys on existing HTD drives
Belt Compatibility
The 17-3M09-6CA2 runs 3 mm HTD® compatible belts in 9mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 17-3M09-6CA2 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Gates® | P17-3M-09AL |
| Stock Drive Products (SDP/SI) | A 6A23-017DF0906 |
| Neuman | 17M3-L09M 6FC |
| York | 17-3M-09 X 3/16 |
| Powerdrive | 17-3M09-6CA2 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 17-3M09-6CA2 pulley?
3 mm HTD® compatible timing belts in 9mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 17-3M09-6CA2 replace the Gates P17-3M-09AL?
Yes. Published interchange data crosses the 17-3M09-6CA2 directly to the Gates P17-3M-09AL, as well as Stock Drive Products A 6A23-017DF0906, Neuman 17M3-L09M 6FC, York 17-3M-09 X 3/16. Verify dimensions and bore before ordering.
Does the 17-3M09-6CA2 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
