17LF075X3/4 Timing Pulley, 17 Teeth, L Pitch, 3/4 in Bore


Price:
$ 36.06

Description

17LF075X3/4 Timing Pulley, 17 Teeth, L Pitch, 3/4 in Bore

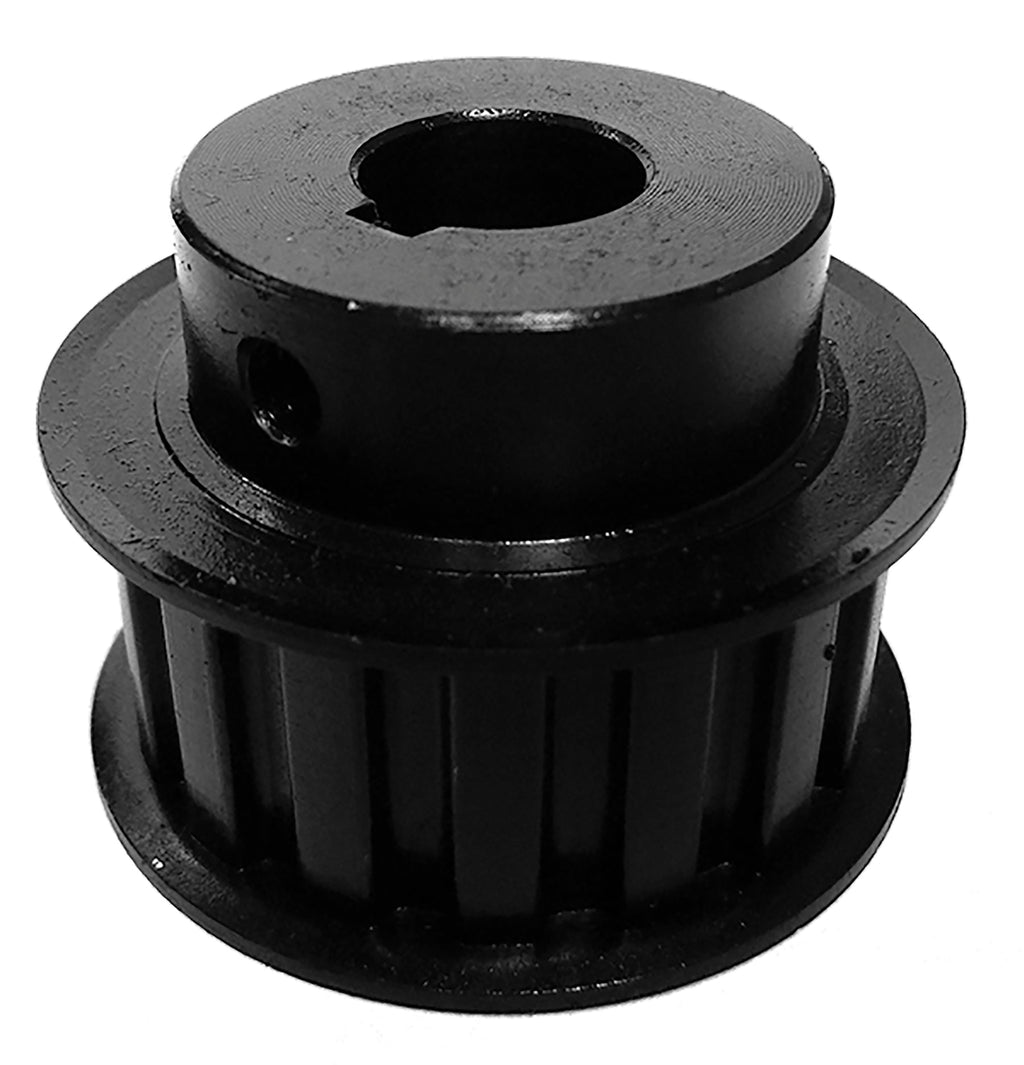

The 17LF075X3/4 is a 17-tooth L (0.375 in trapezoidal) timing pulley with a 3/4 in finished bore, machined from steel with a black oxide finish, built for 0.75 in wide belts. Machined from solid stock, never sintered or powdered metal.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 6F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 17LF075X3/4
Teeth 17
Pitch L (0.375 in trapezoidal)
For Belt Width 0.75 in
Pitch Diameter 2.0292 in
Outside Diameter 1.9992 in
Flange Diameter 2.25 in
Bore 3/4 in finished bore
Face Width 1 in
Overall Length 1.5 in
Hub Diameter 1.437 in
Construction Standard Hub
Set Screws 1 x 1/4-20
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 0.928 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 17LF075X3/4 runs L (0.375 in trapezoidal) belts in 0.75 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 17LF075X3/4 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Regal Rexnord (Browning®) 17LF075X3/4
Mitsuboshi 17LF075X3/4
Grainger 809V42
Powerdrive 17LF075X3/4

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 17LF075X3/4 pulley?

L (0.375 in trapezoidal) timing belts in 0.75 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 17LF075X3/4 replace the Regal Rexnord 17LF075X3/4?

Yes. Published interchange data crosses the 17LF075X3/4 directly to the Regal Rexnord 17LF075X3/4, as well as Mitsuboshi 17LF075X3/4, Grainger 809V42, Powerdrive 17LF075X3/4. Verify dimensions and bore before ordering.

Does the 17LF075X3/4 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 17LF075X3/4?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
