Description

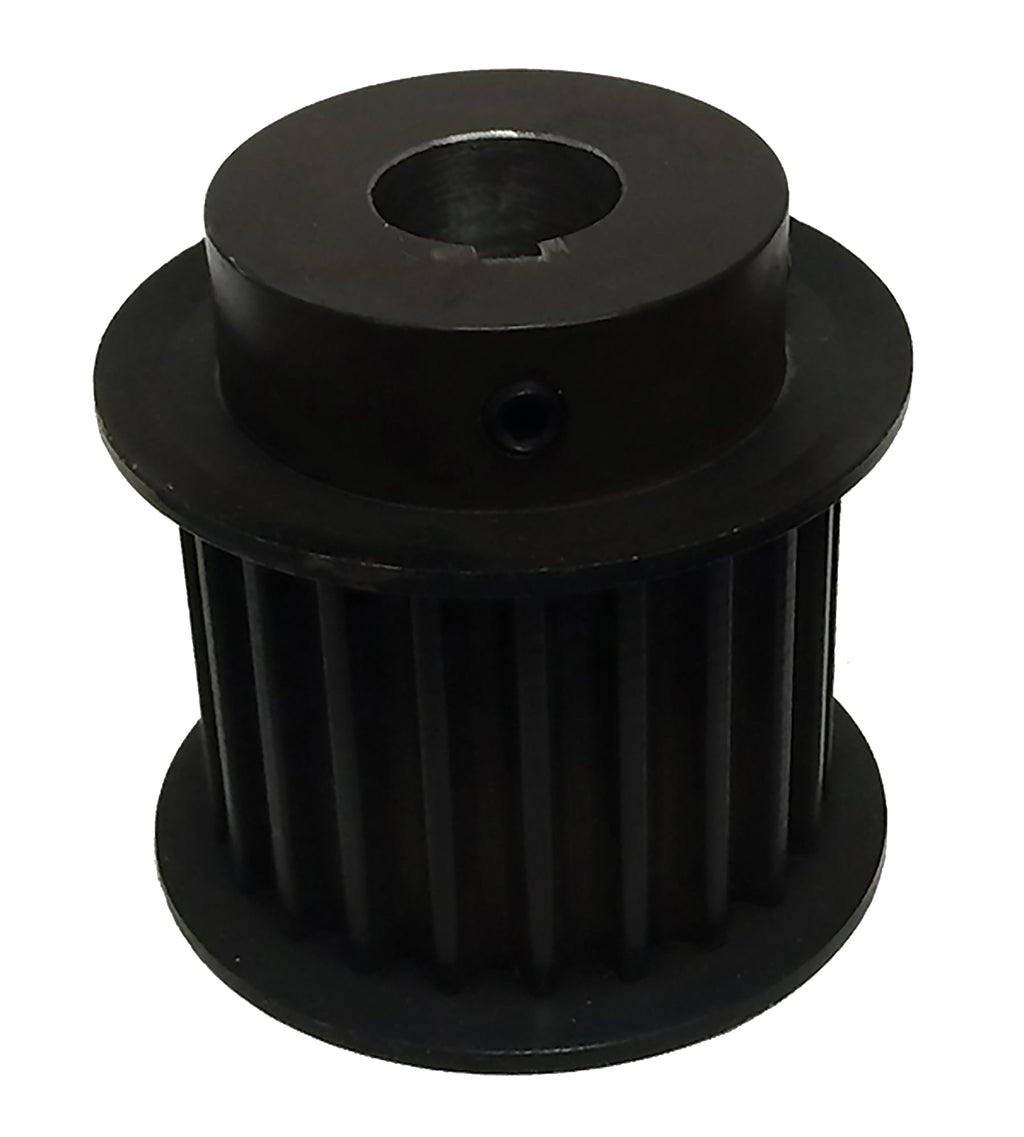

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.
180-14MX90-6050 Powerhouse® MX Timing Pulley, 18 Teeth, 14MX Pitch
The 180-14MX90-6050 is a 18-tooth 14 mm MX high torque timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 9mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 180-14MX90-6050 |
| Teeth | 18 |
| Pitch | 14 mm MX high torque |
| For Belt Width | 9mm |
| Pitch Diameter | 31.5804 in |
| Outside Diameter | 31.4704 in |
| Bore | Accepts 6050 bushing (not included) |
| Face Width | 4.203 in |
| Overall Length | 4.203 in |
| Construction | Taper Lock Hub |
| Material | Cast Iron (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 429 lb |
| Country of Origin | China |
Applications
- High torque, low speed drives replacing roller chain
- Air cooled heat exchanger (ACHE) fan drives
- Oil and gas pumping equipment
- Material handling and conveyor drives
Belt Compatibility
The 180-14MX90-6050 runs 14 mm MX high torque belts in 9mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 180-14MX90-6050 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | 14MX-180S-90-6050 |
| Martin | 14MX180S90-6050 |
| Gates® | 14MX-180S-90 |
| TB Woods® | 14MPC180S90 |
| Regal Rexnord (Browning®) | B14MCS-180-90 |
| Mitsuboshi | 180-14MX90-6050 |
| Powerdrive | 180-14MX90-6050 |
| Continental (ContiTech) | 180G-14M-90-6050 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 180-14MX90-6050 pulley?
14 mm MX high torque timing belts in 9mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 180-14MX90-6050 replace the Dodge 14MX-180S-90-6050?
Yes. Published interchange data crosses the 180-14MX90-6050 directly to the Dodge 14MX-180S-90-6050, as well as Martin 14MX180S90-6050, Gates 14MX-180S-90, TB Woods 14MPC180S90. Verify dimensions and bore before ordering.
Does the 180-14MX90-6050 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
