18H100-6FS7 Timing Pulley, 18 Teeth, H Pitch


Price:
$ 56.44

Description

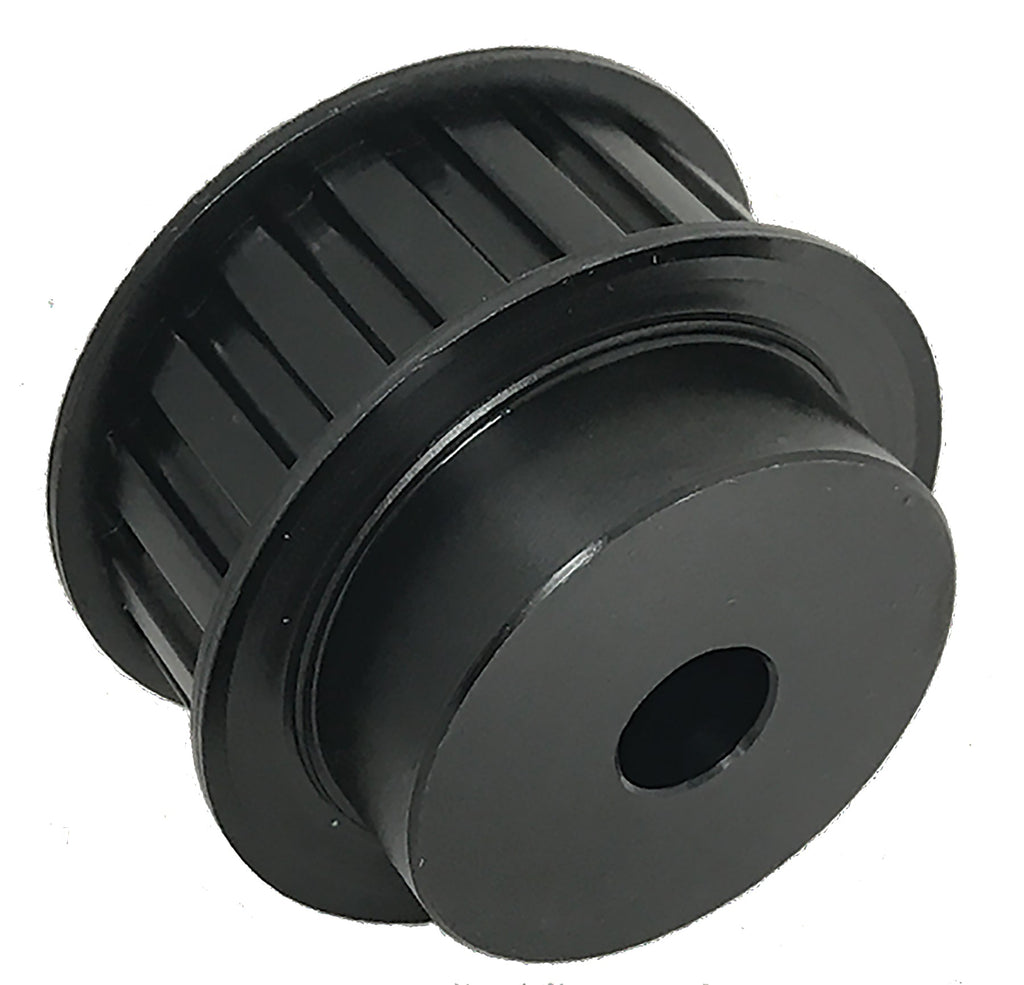

18H100-6FS7 Timing Pulley, 18 Teeth, H Pitch

The 18H100-6FS7 is a 18-tooth H (0.500 in trapezoidal) timing pulley with a 5/8 in minimum plain bore, machined from steel with a black oxide finish, built for 1 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 6FNOKEY pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 18H100-6FS7
Teeth 18
Pitch H (0.500 in trapezoidal)
For Belt Width 1 in
Pitch Diameter 2.8648 in
Outside Diameter 2.8108 in
Flange Diameter 3.1 in
Bore 5/8 in minimum plain bore
Face Width 1.312 in
Overall Length 2 in
Hub Diameter 2.25 in
Construction Standard Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 2.857 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 18H100-6FS7 runs H (0.500 in trapezoidal) belts in 1 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 18H100-6FS7 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 18H100-MPB
Martin 18H100
Regal Rexnord (Browning®) 18HB100
Mitsuboshi 18H100-6FS7
McMaster-Carr 6495K45
Grainger 809V47
Powerdrive 18H100-6FS7
Continental (ContiTech) 18H100-5/8

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 18H100-6FS7 pulley?

H (0.500 in trapezoidal) timing belts in 1 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 18H100-6FS7 replace the Dodge 18H100-MPB?

Yes. Published interchange data crosses the 18H100-6FS7 directly to the Dodge 18H100-MPB, as well as Martin 18H100, Regal Rexnord 18HB100, Mitsuboshi 18H100-6FS7. Verify dimensions and bore before ordering.

Does the 18H100-6FS7 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 18H100-6FS7?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
