18XH200-6FS10 Timing Pulley, 18 Teeth, XH Pitch


Price:
$ 222.84

Description

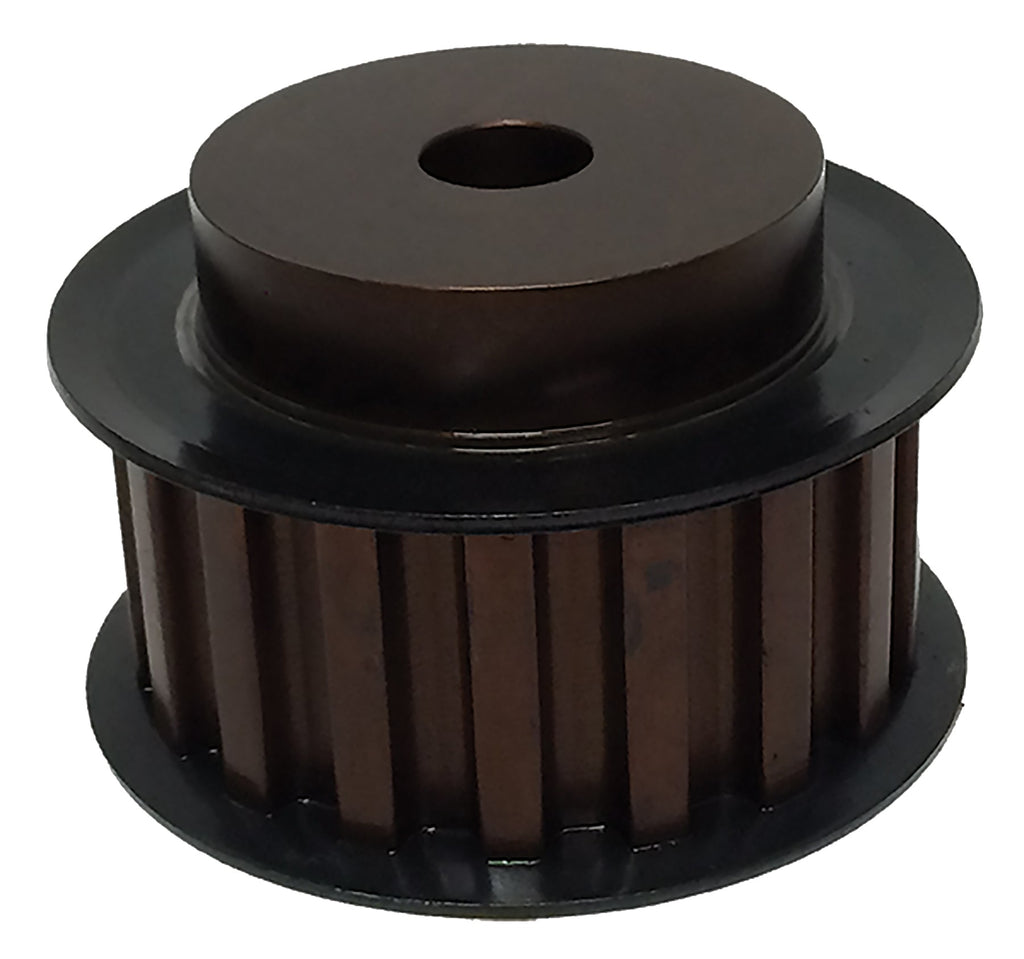

18XH200-6FS10 Timing Pulley, 18 Teeth, XH Pitch

The 18XH200-6FS10 is a 18-tooth XH (0.875 in trapezoidal) timing pulley with a 1 in minimum plain bore, machined from steel with a black oxide finish, built for 2 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 6FNOKEY pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 18XH200-6FS10
Teeth 18
Pitch XH (0.875 in trapezoidal)
For Belt Width 2 in
Pitch Diameter 5.0134 in
Outside Diameter 4.9034 in
Flange Diameter 5.563 in
Bore 1 in minimum plain bore
Face Width 2.563 in
Overall Length 3.438 in
Hub Diameter 3.6875 in
Construction Standard Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 13.345 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The 18XH200-6FS10 runs XH (0.875 in trapezoidal) belts in 2 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 18XH200-6FS10 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® 18XH200-MPB
Martin 18XH200
TB Woods® 18XH200MPB
Regal Rexnord (Browning®) 18XHB200
Powerdrive 18XH200-6FS10

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 18XH200-6FS10 pulley?

XH (0.875 in trapezoidal) timing belts in 2 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 18XH200-6FS10 replace the Dodge 18XH200-MPB?

Yes. Published interchange data crosses the 18XH200-6FS10 directly to the Dodge 18XH200-MPB, as well as Martin 18XH200, TB Woods 18XH200MPB, Regal Rexnord 18XHB200. Verify dimensions and bore before ordering.

Does the 18XH200-6FS10 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 18XH200-6FS10?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
